ALMD-LM36-14002

LED Indication - Discrete Overview

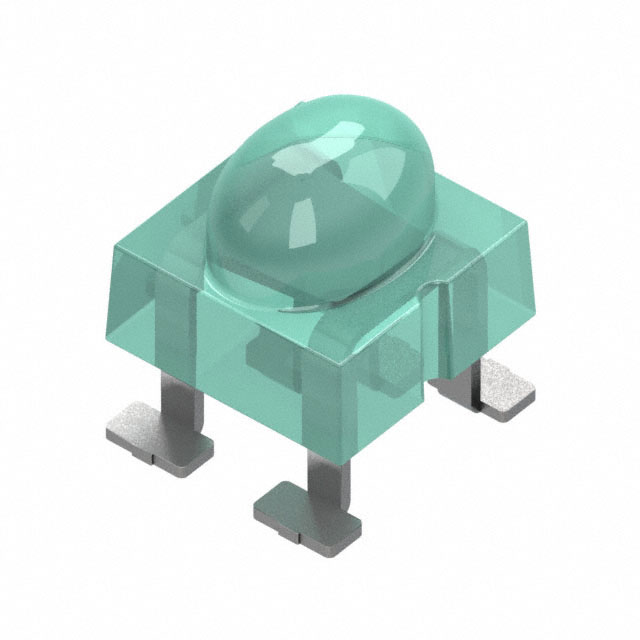

The ALMD-LM36-14002 is a single-color green surface-mount LED from the Broadcom ALMD-Lx36 series. It features an oval lens with diffused transparency and J-leads in a 4-SMD package measuring 4.20mm x 4.20mm. The device emits at a peak wavelength of 516nm with a nominal luminous intensity of 4475 mcd. Electrical characteristics include a typical forward voltage of 3.2V at a test current of 20mA. It operates within a temperature range of -40°C to 85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Utilizes advanced optical grade epoxy for superior performance in outdoor sign applications
• Compatible with common SMT assembly processes and industrial reflow soldering
• Designed specifically for full color/video signs and passenger information displays

LED Indication - Discrete Applications

• Full color video signs
• Indoor passenger information signs
• Outdoor passenger information signs

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance status and moisture sensitivity level (MSL 2A) prior to storage and handling. Ensure ordering suffixes match specific binning requirements for color and intensity uniformity. Review product change notifications for any updates to specifications or packaging methods.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high brightness in a compact oval form factor. Consider the 40°/100° viewing angle and diffused lens style for visibility requirements. Evaluate thermal management capabilities given the 85°C maximum operating temperature limit. Compare against other colors in the ALMD-Lx36 family for consistent visual design across signage systems.

LED Indication - Discrete Part Context

Part of the Avago/Broadcom ALMD-Lx36 oval LED series, which includes amber, red, green, and blue variants. This series offers luminous intensity comparable to conventional high-brightness through-hole LEDs while enabling automated pick-and-place assembly via EIA-compliant tape and reel packaging.

LED Indication - Discrete Replacement Considerations

Consult official replacement guides for updated part numbers within the ALMD-Lx36 family. Verify pinout compatibility and electrical parameters when substituting with similar oval SMT LEDs from other manufacturers.
