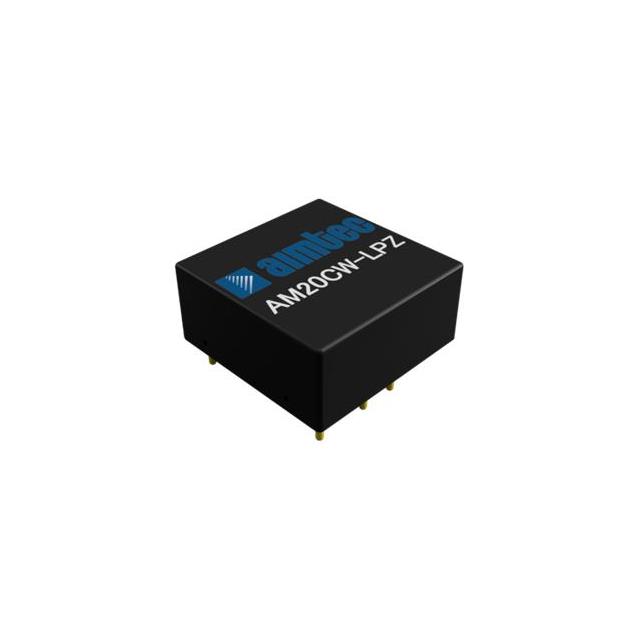

AM20CW-4803SLPZ

AM20CW-4803SLPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 18~75VDC 3.3VDC 5A 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM20CW-4803SLPZ

• Description：18~75VDC 3.3VDC 5A 20W
• Series：AM20CW-LPZ (20W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：20 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 75°C (With Derating)
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.47" H (25.4mm x 25.4mm x 12.0mm)
• Supplier Device Package：6-DIP Module
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1

DC DC Converters datasheet and documents for AM20CW-4803SLPZ
