AM23SURTK-C2

LED Indication - Discrete Overview

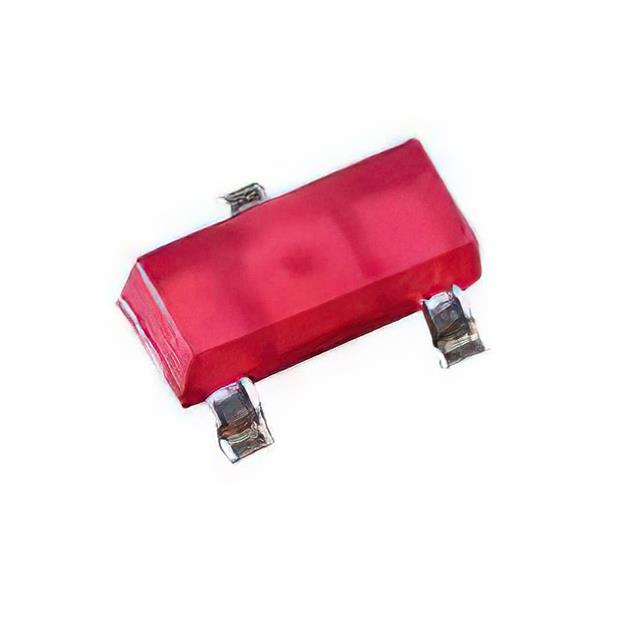

The AM23SURTK-C2 is a surface mount LED lamp manufactured by Kingbright, housed in a compact SOT-23 (TO-236-3/SC-59) package. It features a Hyper Red lens with a clear finish and a rectangular flat-top style measuring 3.00mm x 1.30mm. The device operates at a typical forward voltage of 1.95V and emits light at a wavelength of 630nm. With a millicandela rating of 200mcd, it is designed for low power consumption applications requiring space-efficient status indication.

LED Indication - Discrete Feature Summary

• Compact SOT-23 surface mount package for space-constrained designs
• Hyper Red illumination with clear lens transparency
• Low power consumption characteristics suitable for battery-operated devices

LED Indication - Discrete Applications

• Status indication in portable electronic devices
• Backlighting for small form-factor displays
• Panel indicators in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct binning and packaging configuration. Confirm moisture sensitivity level requirements align with assembly timelines. Check RoHS compliance documentation for regulatory adherence. Ensure soldering patterns follow recommended application notes to prevent thermal damage during reflow processes.

LED Indication - Discrete Selection Notes

Select this component when a small footprint is critical for PCB layout. Consider the 200mcd brightness output against ambient lighting conditions. Evaluate the 1.95V forward voltage drop relative to the system's supply rail. Compare physical dimensions against available board space constraints before finalizing the design.

LED Indication - Discrete Part Context

This part belongs to Kingbright’s family of surface mount LEDs designed for high-density mounting. The SOT-23 package allows for automated placement, improving manufacturing efficiency. It serves as a discrete indicator solution within broader display and signaling subsystems.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other SOT-23 red LEDs from Kingbright such as the AM23SURDK series, though brightness and viewing angle may vary. Verify pinout compatibility and forward voltage tolerance when cross-referencing alternative manufacturers.
