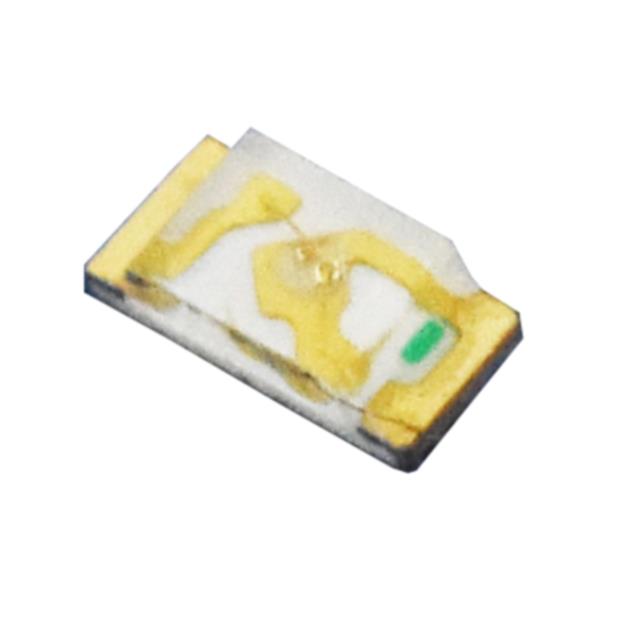

AP0603B-GNL-002MA is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Solidlite. Its product description is LED GREEN 0603 SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for AP0603B-GNL-002MA
- Description：LED GREEN 0603 SMD
- Series：-
- Mfr：Solidlite
- Package：Strip
- Color：Green
- Configuration：-
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：87.5mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.00mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2.7V
- Current - Test：2mA
- Viewing Angle：130°
- Mounting Type：Surface Mount
- Wavelength - Dominant：528nm
- Wavelength - Peak：-
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.80mm W
- Height (Max)：0.50mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for AP0603B-GNL-002MA
LED Indication - Discrete Overview
The AP0603B-GNL-002MA is a discrete green LED from Solidlite, designed for surface-mount applications. It features a 1608 (0603) metric package and emits light at a wavelength of 528nm. The component operates with a forward voltage of 2.7V and supports a current rating of 2mA. This device is RoHS compliant and suitable for use in compact electronic designs requiring visual indication.
LED Indication - Discrete Feature Summary
- Surface-mount construction in a standard 1608 package
- Green light emission at 528nm wavelength
- RoHS compliant manufacturing
LED Indication - Discrete Applications
- Visual status indication in portable electronics
- Panel indicator lights
- Communication equipment signaling
LED Indication - Discrete Procurement Notes
Verify the specific datasheet version to confirm electrical tolerances and thermal characteristics. Ensure that the supply chain provides original manufacturer documentation to validate authenticity. Check for any specific handling requirements related to electrostatic discharge during storage and assembly processes.
LED Indication - Discrete Selection Notes
Select this component when a low-profile green indicator is required for space-constrained boards. Consider the 2.7V forward voltage drop for circuit design compatibility. Evaluate the 1608 footprint against available PCB silkscreen and copper pad dimensions to ensure proper placement and soldering reliability.
LED Indication - Discrete Part Context
This part belongs to Solidlite's discrete LED lineup, specifically tailored for surface-mount technology. It complements other variants in the series that offer different colors or wavelengths, allowing designers to maintain consistent packaging while achieving distinct visual signals across a product line.
LED Indication - Discrete Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and spectral output compatibility before considering alternative manufacturers.
