AP0605D-2C-020MA

LED Indication - Discrete Overview

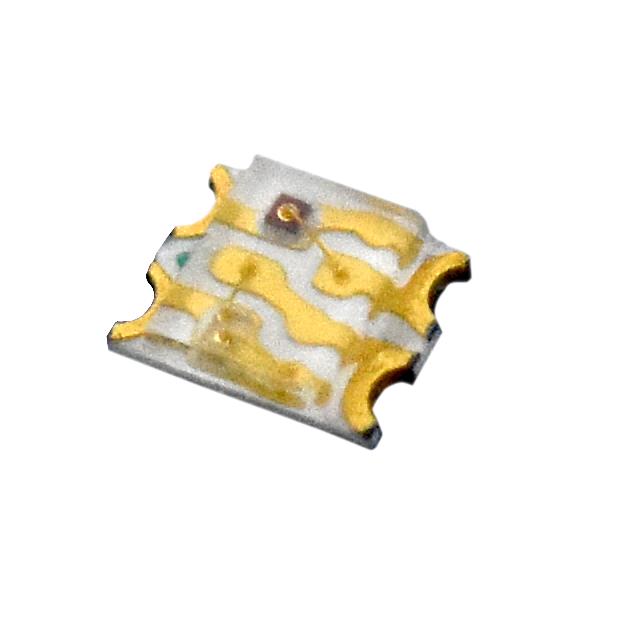

The AP0605D-2C-020MA is a dual-color surface-mount LED component manufactured by Solidlite. It features a compact 0605 package with dimensions of 1.25mm x 1.6mm x 0.4mm. The device integrates two distinct light-emitting diodes within a single housing, providing Red and Yellow-Green outputs. The specified forward current for operation is 20mA. The red emission wavelength ranges from 620nm to 630nm, while the yellow-green emission centers around 625nm. This configuration allows for multi-state indication in space-constrained electronic designs.

LED Indication - Discrete Feature Summary

• Dual-color integration combining Red and Yellow-Green emissions in a single SMD package
• Compact 0605 form factor suitable for high-density PCB layouts
• Standard 20mA forward current rating for reliable operation

LED Indication - Discrete Applications

• Status indication on consumer electronics devices
• Multi-state signaling in industrial control panels
• Visual feedback systems in automotive interior lighting

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version provided by Solidlite or authorized distributors to confirm exact optical intensity values and thermal characteristics. Ensure that the ordering suffix matches the required tape-and-reel packaging specifications if automated assembly is planned. Cross-reference the pinout diagram with your PCB footprint design to prevent polarity errors during soldering.

LED Indication - Discrete Selection Notes

Select this component when a dual-color indication capability is required within strict spatial limitations defined by the 0605 package size. Consider the specific chromaticity coordinates of the red and yellow-green outputs to ensure visibility under intended ambient lighting conditions. Evaluate the thermal management requirements of the host application against the component's rated operating temperature range.

LED Indication - Discrete Part Context

This part belongs to Solidlite's line of surface-mount LED indicators designed for general-purpose illumination and signaling. The 0605 series offers a balance between physical footprint and optical output efficiency. It serves as an alternative to discrete single-color LEDs where space optimization and multi-functionality are prioritized in modern electronic product designs.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers must verify pin compatibility, spectral output, and mechanical dimensions before considering any cross-brand alternatives.
