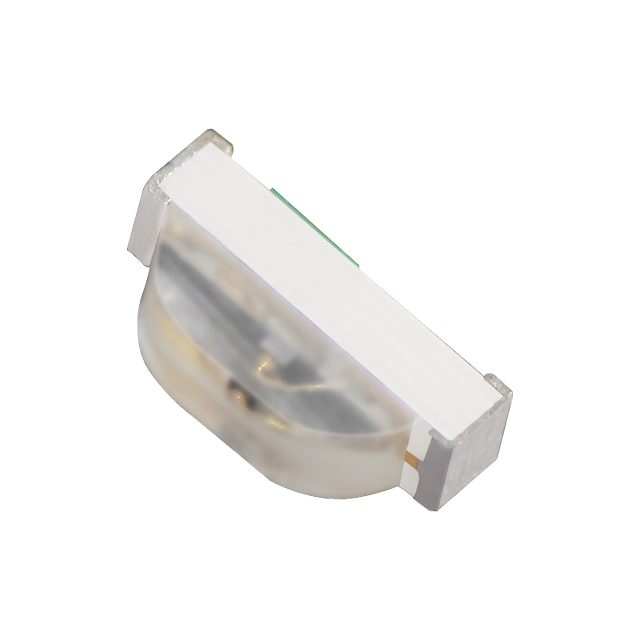

APA2107QBC/D

Description：LED BLUE CLEAR 2SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:133203b71870 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED BLUE CLEAR 2SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：80mcd
Lens Style：Rectangle with Domed Top
Lens Size：1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：465nm
Wavelength - Peak：460nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：2-SMD
Size / Dimension：2.10mm L x 1.00mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

Download product information

APA2107QBC/D

Overview

The APA2107QBC/D is a single-color surface-mount LED manufactured by Kingbright. It emits blue light with a peak wavelength of 468 nm and a nominal luminous intensity of 90 mcd. The component features a water-clear lens and operates within a temperature range of -40°C to +85°C. Electrical specifications include a maximum forward current of 30 mA, a typical forward voltage of 3.3 V, and a maximum reverse voltage of 5 V. The package dimensions are 2.10 mm in length, 1.00 mm in width, and 0.60 mm in height.

Feature Summary

Blue emission with 468 nm peak wavelength
Water-clear lens for optimal light transmission
Surface-mount technology (SMT) construction

Applications

Electronic device status indicators
Panel illumination
Backlighting applications

Procurement Notes

Verify the specific suffix 'QBC/D' against the official Kingbright datasheet to confirm the exact color bin, luminous intensity grade, and packaging configuration. Ensure that the requested quantity matches the standard reel size or cut-tape requirements specified in the manufacturer's documentation. Confirm RoHS compliance status and moisture sensitivity level prior to ordering.

Selection Notes

Select this component when a compact blue indicator is required for space-constrained designs. Consider the 30 mA maximum forward current limit and the 3.3 V forward voltage drop for circuit design. Evaluate the 120-degree viewing angle and 90 mcd intensity against visibility requirements. Compare thermal performance within the -40°C to +85°C operating range relative to the application environment.

Part Context

This part belongs to the APA2107 series of single-color LEDs from Kingbright. The series offers various color options and lens types in a standardized 0805 (2012 metric) footprint. The APA2107QBC/D specifically provides blue emission characteristics suitable for general-purpose indication tasks where consistent color and moderate brightness are prioritized.

Replacement Considerations

Consult Kingbright's official cross-reference documentation for verified substitutes. Potential alternatives may include other blue SMD LEDs with similar 0805 footprints and electrical ratings, provided they match the peak wavelength and forward voltage constraints.
