Product Detailed Parameters
- Description：LED GREEN/RED CLR CHIP SMD R/A
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：50mcd Green, 200mcd Red
- Lens Style：Rectangle with Domed Top
- Lens Size：2.00mm x 1.00mm
- Voltage - Forward (Vf) (Typ)：2.1V Green, 1.95V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：140°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：570nm Green, 630nm Red
- Wavelength - Peak：574nm Green, 650nm Red
- Features：-
- Package / Case：3-SMD, No Lead
- Supplier Device Package：Chip LED
- Size / Dimension：3.00mm L x 2.00mm W
- Height (Max)：1.00mm
- Grade：-
- Qualification：-
Download product information
Overview

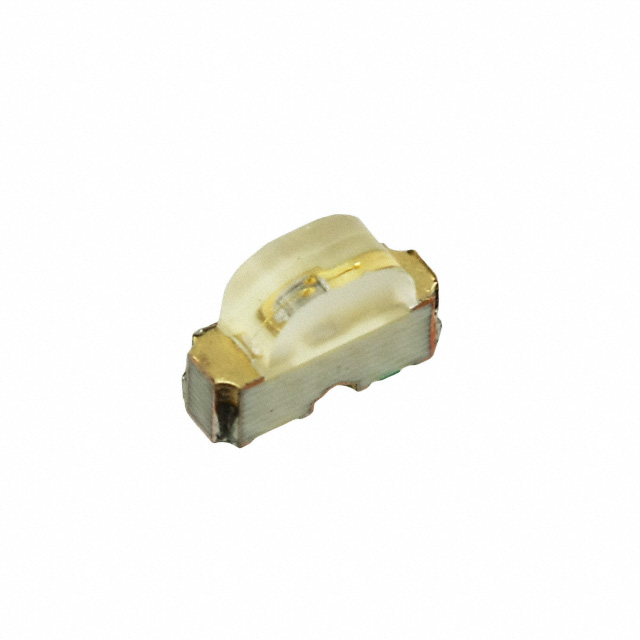

The APBVA3010SURKCGKC is a bi-color surface-mount LED by Kingbright, featuring red and green emitters in a 3010 package. It operates at a forward current of 20 mA with voltages of 1.95 V (red) and 2.1 V (green). The component emits at wavelengths of 630 nm and 570 nm, with light intensities of 200 mcd and 50 mcd respectively. It offers a wide viewing angle of 140 degrees and functions within a temperature range of -40°C to +85°C.
Feature Summary
- Integrates dual-color red and green LEDs into a compact SMD form factor for space-constrained designs.
- Provides a wide 140-degree viewing angle to ensure broad visibility of status indicators.
- Utilizes a water-clear semitube lens to maintain optical clarity and color accuracy.
Applications
- Status indication on electronic control panels
- Power supply unit signaling
- Consumer appliance front panels
Procurement Notes
Verify the specific suffix configuration against the manufacturer datasheet to confirm wavelength and intensity tolerances. Ensure compatibility with standard reflow soldering profiles for 3010 packages. Confirm moisture sensitivity level handling procedures during storage and assembly to prevent package damage. Cross-reference pin assignments if substituting from other bi-color variants.
Selection Notes
Select this component when a single footprint is required for two distinct status colors. The 3010 size suits high-density PCB layouts. Consider the 140-degree viewing angle for applications requiring peripheral visibility. Verify that the 20 mA forward current aligns with the system's drive circuit capabilities.
Part Context
This part belongs to Kingbright's multi-color LED portfolio, specifically designed for surface-mount technology. It shares the 3010 mechanical dimensions with other components in the series but differs in internal chip configuration to support bi-color operation. It is distinct from single-color or RGB variants within the same package family.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify electrical parameters such as forward voltage and luminous intensity before considering alternative manufacturers.
