APG0603PBC-TT-5MAV

LED Indication - Discrete Overview

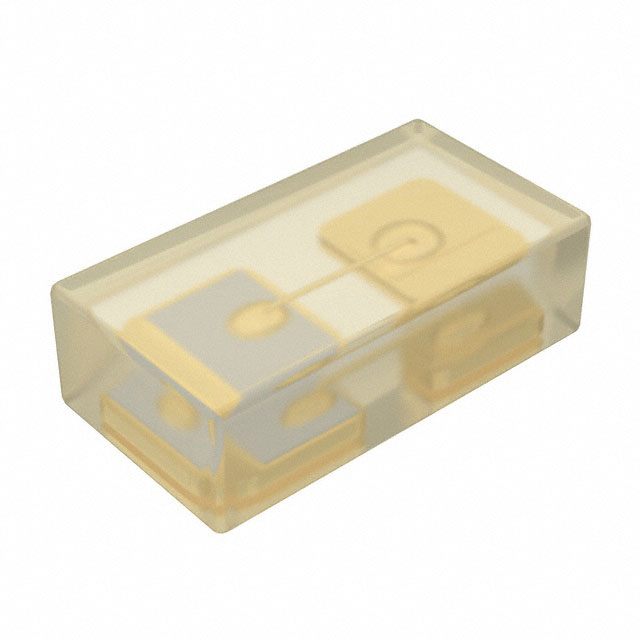

The Kingbright APG0603PBC-TT-5MAV is a single-color blue surface-mount LED from the HELI-UM series. It features a dominant wavelength of 467 nm and a peak wavelength of 461 nm. The device operates with a typical forward voltage of 2.9 V at a test current of 5 mA, delivering an optical intensity of 25 mcd. Packaged in a compact 0201 (0.65 mm x 0.35 mm) footprint with a thickness of 0.2 mm, it supports a maximum forward current of 10 mA. The component utilizes a clear lens and offers a wide viewing angle suitable for various electronic applications.

LED Indication - Discrete Feature Summary

• Compact 0201 surface-mount package with 0.2 mm profile
• High-intensity blue emission at 467 nm dominant wavelength
• Wide viewing angle for enhanced visibility
• Compatible with automatic placement equipment

LED Indication - Discrete Applications

• Backlighting for displays
• Status indicator lights
• Home and smart appliances
• Wearable and portable devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix '5MAV' to confirm the 5 mA test current and 25 mcd intensity rating, as standard variants may differ. Ensure compatibility with RoHS and halogen-free requirements. Confirm moisture sensitivity level 2 handling procedures during assembly. Cross-reference datasheet electrical parameters against design constraints before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component for designs requiring minimal board space due to its 0201 footprint. Consider the 2.9 V forward voltage when designing drive circuits. Verify that the 25 mcd intensity meets visibility requirements for the target application environment. Ensure the wide viewing angle aligns with the optical orientation needs of the final product assembly.

LED Indication - Discrete Part Context

This part belongs to Kingbright's HELI-UM series, which focuses on ultra-miniature LEDs. The series provides high brightness in small packages for modern electronics. The APG0603 designation indicates the 0201 metric size. The suffix denotes specific binning for wavelength and intensity.

LED Indication - Discrete Replacement Considerations

Check for direct substitutes within the HELI-UM series or other 0201 blue LEDs from Kingbright. Verify identical footprint dimensions and pin configuration. Compare forward voltage and intensity ratings to ensure functional equivalence in the circuit design.
