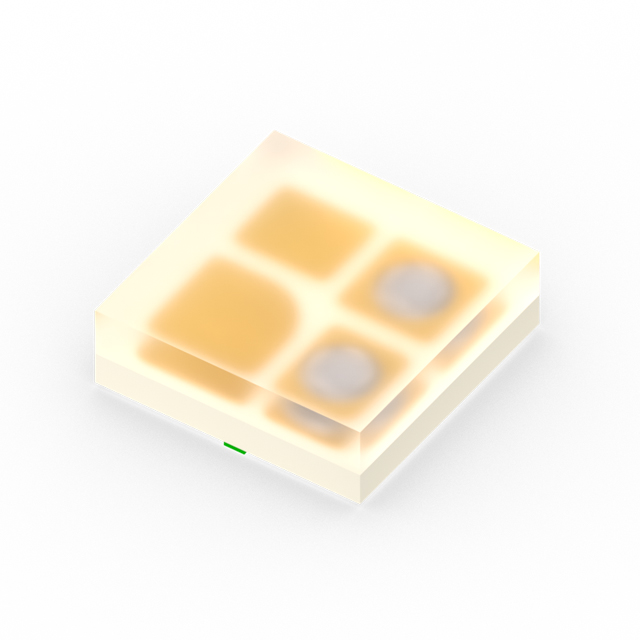

APGF0606SEEKSYKXC-TT
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RED/YLW CLEAR 4SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Yellow
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：80mcd Red, 17mcd Yellow
- Lens Style：Square with Flat Top
- Lens Size：0.65mm
- Voltage - Forward (Vf) (Typ)：1.95V Red, 1.97V Yellow
- Current - Test：5mA Red, 5mA Yellow
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：624nm Red, 589nm Yellow
- Wavelength - Peak：632nm Red, 591nm Yellow
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-SMD
- Size / Dimension：0.65mm L x 0.65mm W
- Height (Max)：0.25mm
- Grade：-
- Qualification：-
Download product information
Overview
The APGF0606SEEKSYKXC-TT is a miniature surface-mount bi-color LED from Kingbright, featuring a red and yellow color combination. It utilizes a common cathode configuration within an ultra-small 0202 footprint measuring 0.65mm x 0.65mm with a thickness of 0.2mm. The device operates at a forward current of 10mA and offers a wide viewing angle of 140 degrees. Designed for low power consumption, it supports various color display options in compact designs.
Feature Summary
- Ultra-small 0202 package dimensions suitable for height-restricted designs
- Bi-color functionality with common cathode configuration
- Wide viewing angle for enhanced visibility
- Low power consumption driven at standard test currents
Applications
- Wearable electronics indicator lights
- Disposable medical device status indicators
- Portable consumer electronics displays
- Industrial handheld device backlights
Procurement Notes
Verify the specific suffix 'TT' corresponds to tape and reel packaging requirements. Confirm moisture sensitivity level compliance for surface mount reflow processes. Ensure the common cathode pinout matches the target circuit design. Check RoHS3 certification status for environmental compliance. Validate supplier documentation against the official Kingbright datasheet specifications.
Selection Notes
Select this component when board space is critically limited due to its 0.65mm square footprint. Choose for applications requiring dual-color indication without increasing profile height. Consider for battery-powered devices due to low current operation. Evaluate thermal management needs despite small size. Compare against single-color alternatives if only one state is required.
Part Context
This part belongs to Kingbright's APGF0606 series of miniature SMD LEDs. The series focuses on providing multi-color options in extremely small packages. It targets modern electronics where miniaturization is prioritized over traditional component sizes. The technology enables complex visual signaling in constrained spaces.
