APHCM2012QBC/D-F01

LED Indication - Discrete Overview

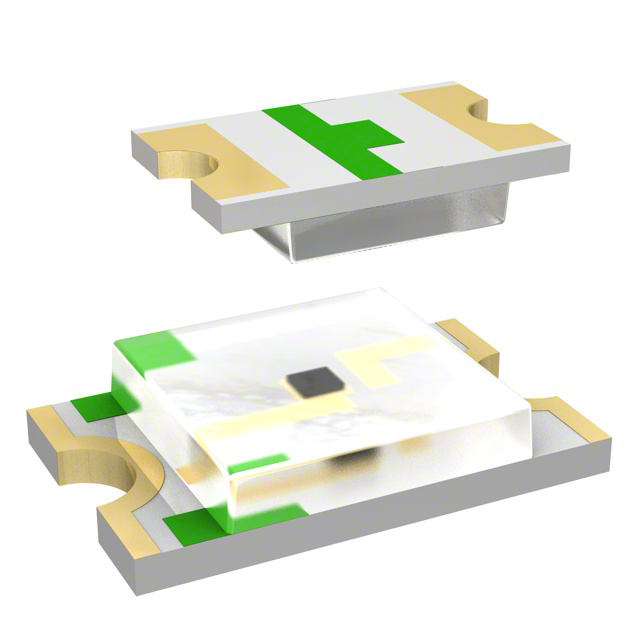

The Kingbright APHCM2012QBC/D-F01 is a dual-chip surface-mount LED in a 2012 (0805) package. It integrates red and blue emitting diodes within a single rectangular lens assembly. The component features two pins for electrical connection and utilizes GaAs material for the red chip and InGaN for the blue chip. Key electrical parameters include a forward voltage of 3.3V, a maximum forward current of 20mA, and a power rating of 120mW. The device offers a wide viewing angle and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Dual-color integration combining red and blue emission sources
• Compact 2012 surface-mount form factor
• Wide viewing angle for broad visibility
• RoHS compliant construction

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Multi-state signaling in consumer electronics
• Visual alerts in portable devices
• Indicator lights in automotive dashboards

LED Indication - Discrete Procurement Notes

Verify the specific binning codes for luminous intensity and wavelength when ordering, as these can vary between suppliers. Confirm moisture sensitivity level requirements for storage and handling procedures. Ensure that the soldering profile matches the recommended patterns provided in the official datasheet to prevent thermal damage during reflow processes.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a dual-color indicator in a standard 0805 footprint. Consider the combined forward voltage and current limits to design appropriate drive circuits. Evaluate the visual mixing of red and blue light if white or purple states are required, noting that color perception may vary based on viewing angle and ambient conditions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's SMD LED lineup, specifically designed for applications requiring multiple colors in minimal board space. The 2012 package size is widely used in compact consumer electronics and industrial control panels where traditional through-hole LEDs are too large.

LED Indication - Discrete Replacement Considerations

Potential substitutes include other 0805 dual-color LEDs from manufacturers like Everlight or Lite-On. Verify pinout compatibility and forward voltage characteristics before substitution. Ensure the replacement part meets the same mechanical dimensions and thermal dissipation requirements.
