APL3015QBC/D-F01

$0.39

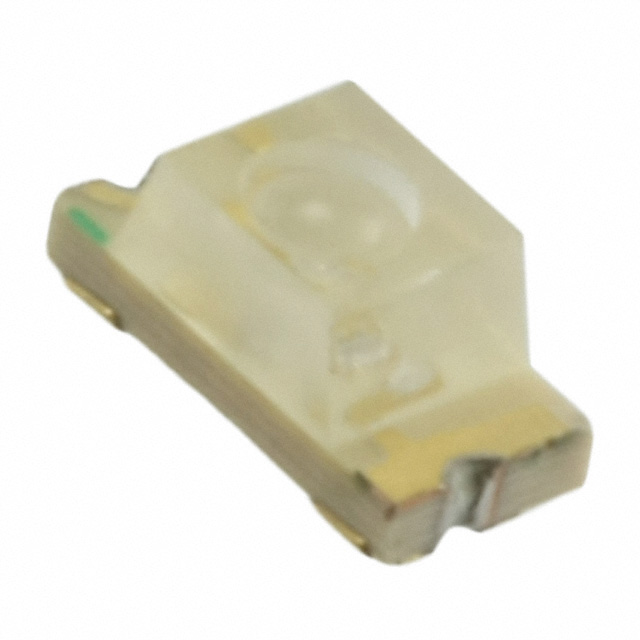

Description：LED BLUE CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6570161e050e Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APL3015QBC/D-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED BLUE CLEAR CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APL3015QBC/D-F01

Description：LED BLUE CLEAR CHIP SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：200mcd
Lens Style：Round with Flat Top
Lens Size：0.18mm Dia
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：70°
Mounting Type：Surface Mount
Wavelength - Dominant：465nm
Wavelength - Peak：460nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：3.00mm L x 1.50mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APL3015QBC/D-F01

APL3015QBC/D-F01

LED Indication - Discrete Overview

The APL3015QBC/D-F01 is a single-color blue surface-mount LED manufactured by Kingbright. It operates at a forward current of 20 mA with a forward voltage of 3.3 V and a power rating of 120 mW. The component emits light at a wavelength of 465 nm with an optical intensity of 200 mcd. It features a water-clear dome lens within a 1206 (3mm x 2mm) SMD-2 package, measuring 1 mm in height. The device supports a wide operating temperature range from -40°C to +85°C and includes moisture sensitivity handling requirements.

LED Indication - Discrete Feature Summary

Utilizes a water-clear dome lens for effective light transmission
Designed for standard surface-mount technology (SMD/SMT) assembly
Constructed with a rectangular footprint compatible with 1206 metric dimensions

LED Indication - Discrete Applications

Indicator lighting for electronic equipment
Status indication on printed circuit boards
General-purpose visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm exact binning or packaging variations. Confirm RoHS compliance status through the manufacturer's latest environmental declaration. Ensure storage conditions account for the specified moisture sensitivity level prior to soldering. Cross-reference the full part number with authorized distributors to validate current availability and authenticity.

LED Indication - Discrete Selection Notes

Select this component when a compact blue indicator is required for space-constrained designs. The 1206 package offers a balance between visibility and board real estate. Consider the 3.3 V forward voltage drop when designing series resistor networks. Verify that the 200 mcd intensity meets the visibility requirements for the intended application environment.

LED Indication - Discrete Part Context

This component belongs to Kingbright's single-color LED portfolio, specifically within the blue emission category. It shares the physical 1206 form factor with other variants in the series but differs in optical characteristics such as wavelength and intensity. The product line focuses on providing standardized surface-mount solutions for various industrial and commercial applications.
