APT2012QGW

LED Indication - Discrete Overview

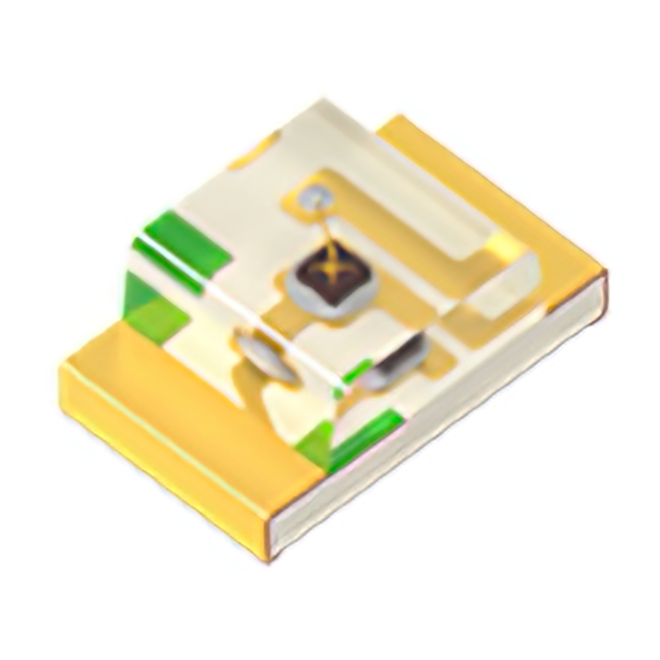

The Kingbright APT2012QGW is a green surface-mount LED in the 2012 (0805 metric) package. It emits at a peak wavelength of 565nm with a typical forward voltage of 2.15V and maximum power dissipation of 105mW. The component features a colorless lens, a viewing angle of 120 degrees, and operates within a high temperature range up to 100°C.

LED Indication - Discrete Feature Summary

• Constructed using AlGaInP on a GaAs substrate for stable performance
• Engineered for reliable operation at elevated temperatures up to 100°C
• Utilizes a rectangular, colorless lens for consistent light transmission

LED Indication - Discrete Applications

• High-temperature electronic indicator circuits
• General-purpose optoelectronic signaling devices
• Surface-mount assembly for compact consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Kingbright documentation to confirm exact binning and optical characteristics. Ensure the procurement source provides valid RoHS compliance certificates. Cross-reference the datasheet parameters with the actual delivered components to guarantee alignment with design requirements before integration.

LED Indication - Discrete Selection Notes

Select this component when a standard green SMD LED is required for environments exceeding typical thermal limits. The 2012 footprint offers a balance between visibility and board space efficiency. Confirm that the 105mW power rating accommodates the intended drive current without exceeding thermal constraints.

LED Indication - Discrete Part Context

This device belongs to the Kingbright 2012 series of discrete LEDs. It serves as a standard indication component for general electronics. The part utilizes a two-terminal surface-mount configuration compatible with automated pick-and-place manufacturing processes.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
