APTM100UM45DAG

Single FETs, MOSFETs Overview

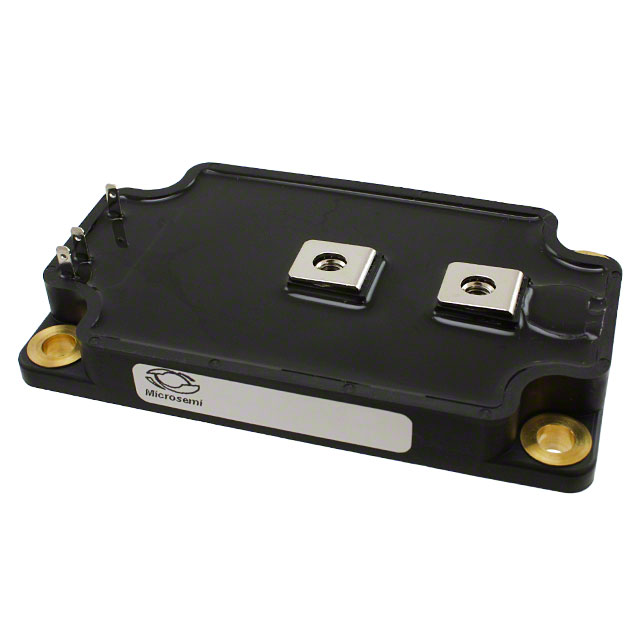

The APTM100UM45DAG is a single-switch N-channel MOSFET module manufactured by Microchip Technology. It utilizes silicon technology and features the SP6C package design for screw mount installation. The device supports a drain-source breakdown voltage of 1 kV and a continuous drain current of 215 A. Its maximum on-resistance is specified at 45 mOhms, with a gate-source voltage range of -30 V to +30 V. The module operates within a temperature range of -40°C to +150°C and has a power dissipation rating of 5 kW.

Single FETs, MOSFETs Feature Summary

• Integrates a single N-channel MOSFET switch within a robust SP6C package structure.
• Designed for high-power applications requiring low conduction losses via optimized on-resistance.
• Supports screw mount installation for secure mechanical attachment to heat sinks.

Single FETs, MOSFETs Applications

• Industrial motor drives
• High-frequency switching power supplies
• Inverter circuits

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix 'DAG' against official Microchip documentation to confirm exact pinout and thermal characteristics, as variations exist within the APTM100 series. Ensure compatibility with SP6 mounting hardware. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Single FETs, MOSFETs Selection Notes

Select this component when a single high-current N-channel switch is required in an SP6C package. Compare the 45 mOhm on-resistance against system loss requirements. Verify that the 215 A current rating meets peak load demands. Ensure the driving circuitry can handle the specified gate voltage limits and charge requirements for reliable switching performance.

Single FETs, MOSFETs Part Context

This module belongs to the POWER MOS 7 family from Microchip Technology. It represents a discrete power semiconductor solution designed for efficient energy conversion. The SP6C package provides a standardized form factor for integration into larger power electronic assemblies, distinguishing it from smaller surface-mount or standard TO-247 packages.

Single FETs, MOSFETs Replacement Considerations

APTM100UM45FAG shares the same SP6C package and nominal 45 mOhm resistance but may differ in internal configuration or suffix specifications. Verify electrical equivalence and mechanical fit before substitution.
