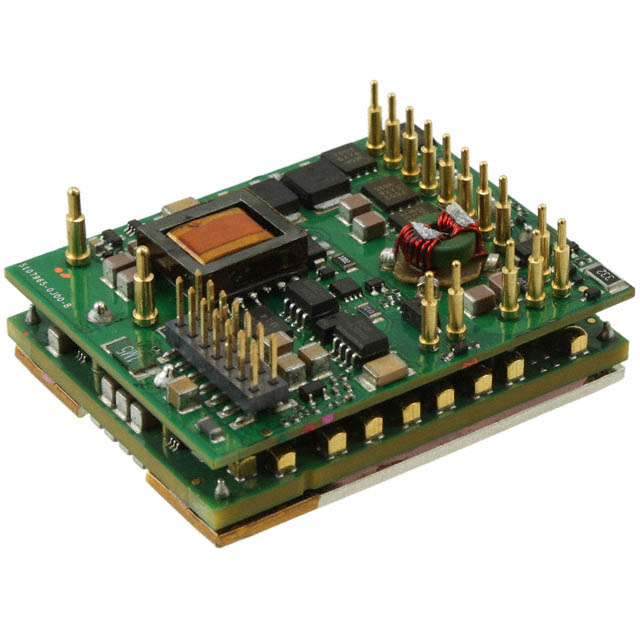

ATCR250-48D12-03J

ATCR250-48D12-03J is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 12V 3.3V 250W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ATCR250-48D12-03J

• Description：DC DC CONVERTER 12V 3.3V 250W
• Series：ATCR250 (250W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Intermediate Bus Converter, Digital
• Number of Outputs：2
• Voltage - Input (Min)：-36V
• Voltage - Input (Max)：-72V
• Voltage - Output 1：12V
• Voltage - Output 2：3.3V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20.83A, 4.5A
• Power (Watts)：250 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-25°C ~ 85°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：30-DIP Module
• Size / Dimension：2.32" L x 1.81" W x 0.83" H (59.0mm x 46.0mm x 21.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
