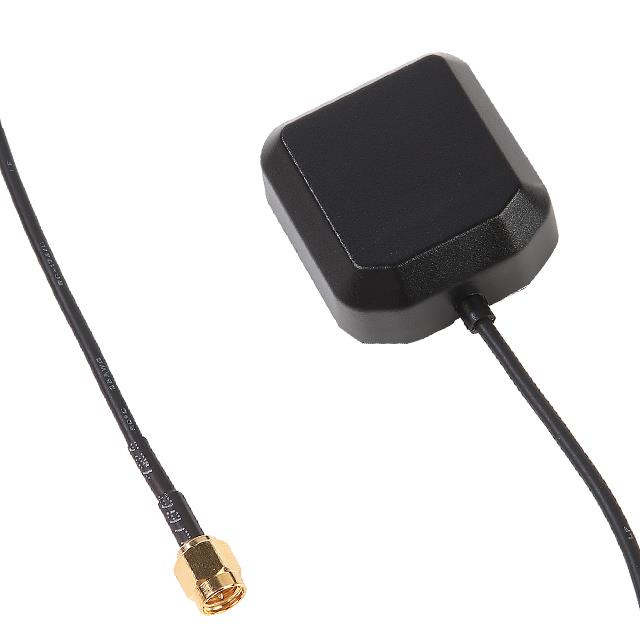

ATGGBL54138M-SMA-3

$28.26

Description：RF ANT GPS L1+L5/GNSS SMA 3M
Series：ATGGB
Mfr：YIC
Package：Bulk

SKU:e68b8a6ffa87 Category: RF Antennas Brand: YIC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ATGGBL54138M-SMA-3 is listed in the Antennas RF range at ChipApex. The manufacturer field lists YIC. Its product description is RF ANT GPS L1+L5/GNSS SMA 3M. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ATGGBL54138M-SMA-3

Description：RF ANT GPS L1+L5/GNSS SMA 3M
Series：ATGGB
Mfr：YIC
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz
Antenna Type：Module
Number of Bands：4
VSWR：2
Return Loss：-4.57dB, -5.39dB, -10.91dB, -16.39dB, -27.04dB, -29.04dB
Gain：0dBi, 1dBi, 2dBi, 3.5dBi
Features：Cable - 3m, LNA, Filter
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.642" (16.30mm)
Applications：Beidou, Galileo, GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for ATGGBL54138M-SMA-3

ATGGBL54138M-SMA-3

Antennas RF Overview

The YIC ATGGBL54138M-SMA-3 is an active RF antenna designed for multi-constellation GNSS applications. It supports GPS L1/L5, Beidou B1/B2/B3, Galileo E1/E5a, and GLONASS L1 bands. Center frequencies include 1.176GHz, 1.561GHz, 1.575GHz, and 1.602GHz. The unit features a SMA male connector with a 3-meter cable length. Peak gain ranges from 0dBi to 3.5dBi across the supported bands. VSWR is specified at 2. This component facilitates navigation, clock synchronization, and positioning for compatible receivers.

Antennas RF Feature Summary

Supports multiple global navigation satellite systems including GPS, Beidou, Galileo, and GLONASS
Operates across four distinct frequency bands for enhanced signal acquisition
Includes a 3-meter cable with SMA male connector for flexible installation

Antennas RF Applications

GNSS receiver navigation systems
Precision clock synchronization modules
Geospatial positioning equipment

Antennas RF Procurement Notes

Verify the specific part number suffix against official YIC documentation to confirm connector type and cable length specifications. Ensure compatibility with the target GNSS receiver interface requirements before procurement. Cross-reference datasheet parameters to validate performance expectations for the intended operational environment.

Antennas RF Selection Notes

Select this model when multi-band GNSS support is required for robust positioning accuracy. Consider the 3-meter cable length for installation flexibility. Verify that the active antenna design aligns with the power supply capabilities of the connected receiver system. Confirm frequency band coverage matches the specific regional or global navigation needs.

Antennas RF Part Context

This component belongs to the YIC RF antenna portfolio, specifically engineered for high-performance GNSS applications. It addresses the need for reliable signal reception across diverse satellite constellations. The design integrates active components to enhance sensitivity in challenging environments.
