ATIFGGBL5-4020

Antennas RF Overview

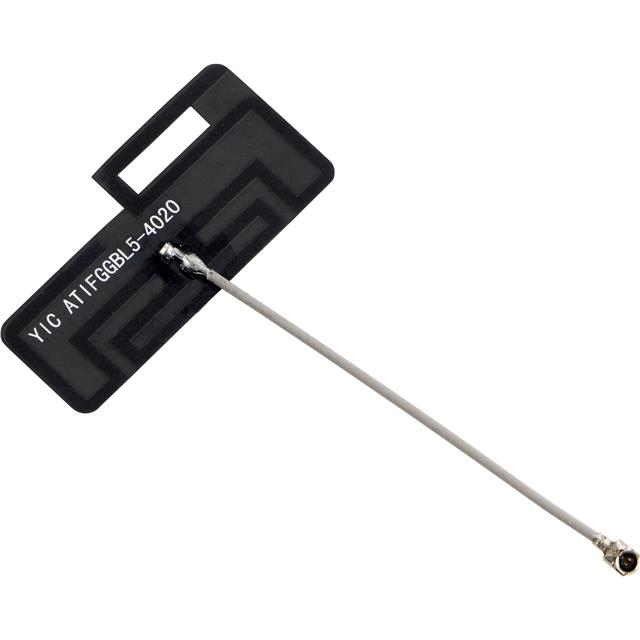

The YIC ATIFGGBL5-4020 is a flexible PCB internal antenna designed for GNSS applications. It supports multi-band reception including GPS L1 and L5, GLONASS, Beidou, and Galileo frequencies. The component utilizes a surface mount technology (SMT) package with an integrated U.FL (UMCC) or I-PEX MHF1 connector interface. This configuration allows for direct integration into compact electronic devices requiring precise navigation, clock synchronization, and positioning capabilities across multiple global satellite systems.

Antennas RF Feature Summary

• Supports multi-band GNSS reception including GPS L1/L5, GLONASS, Beidou, and Galileo
• Flexible PCB construction enables adaptation to various device form factors
• Integrated U.FL/I-PEX MHF1 connector simplifies RF signal transmission

Antennas RF Applications

• Navigation systems in mobile devices
• Clock synchronization modules
• Precision positioning equipment

Antennas RF Procurement Notes

Verify the specific connector type required for your design, as listings indicate compatibility with both U.FL and I-PEX MHF1 interfaces. Confirm RoHS compliance status directly with the supplier prior to ordering. Ensure the flexible PCB dimensions match your assembly constraints. Cross-reference the manufacturer part number with official distributor catalogs to confirm current availability and lead times before finalizing procurement plans.

Antennas RF Selection Notes

Select this component when multi-band GNSS support is required within a constrained space. The flexible nature of the PCB allows for installation in non-planar surfaces. Ensure the host device provides adequate clearance for the antenna footprint. Verify that the connected receiver supports the specific L1 and L5 frequency bands utilized by this antenna for optimal performance.

Antennas RF Part Context

This antenna belongs to the family of flexible PCB internal antennas manufactured by YIC. These components are engineered for modern consumer electronics and IoT devices where traditional rigid antennas cannot fit. The ATIFGGBL5-4020 specifically addresses the need for high-precision positioning by supporting dual-frequency GPS signals alongside other global navigation satellite systems.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the electrical specifications, connector type, and physical dimensions. Consult the manufacturer for equivalent models if this specific part is discontinued.
