ATP868R2540A

Antennas RF Overview

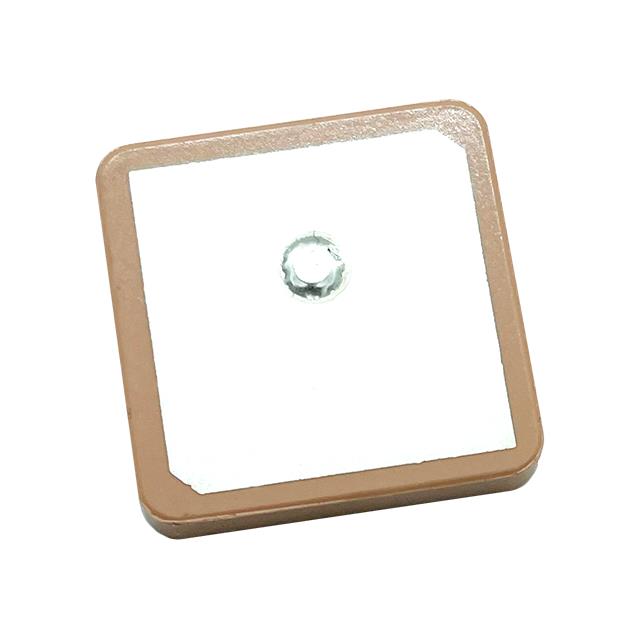

The YIC ATP868R2540A is a ceramic patch RF antenna designed for the UHF band, specifically operating within the 867MHz to 869MHz frequency range with a center frequency of 868MHz. It features a VSWR of 1.5 and utilizes pin termination for adhesive mounting. The component measures 25x25mm with a maximum height of 4.00mm. It complies with RoHS standards and is classified under EAR99.

Antennas RF Feature Summary

• Ceramic patch construction optimized for compact integration
• Designed for ISM, LoRa, and Sigfox communication protocols
• Adhesive mounting configuration with pin termination

Antennas RF Applications

• ISM band wireless communication systems
• LoRa network devices
• Sigfox IoT modules

Antennas RF Procurement Notes

Verify manufacturer part number ATP868R2540A against official YIC documentation to ensure authenticity. Confirm RoHS compliance status and EAR99 classification requirements for your region. Check datasheet specifications for adhesive mounting compatibility and pin termination details before integration.

Antennas RF Selection Notes

Select this antenna for applications requiring operation in the 867-869MHz UHF range. Ensure design accommodates the 25x25mm footprint and 4.00mm height. Verify that the adhesive mounting method aligns with the target PCB assembly process and mechanical constraints.

Antennas RF Part Context

This component belongs to the ATP868 series from YIC, focusing on ceramic frequency control components. YIC specializes in providing complete frequency control solutions, including GNSS modules and antennas for automotive and industrial applications.

Antennas RF Replacement Considerations

Consult YIC official documentation for direct substitutes within the ATP868 series. Verify electrical parameters and physical dimensions match before considering alternative ceramic patch antennas.
