ATPG1590R1040A

Antennas RF Overview

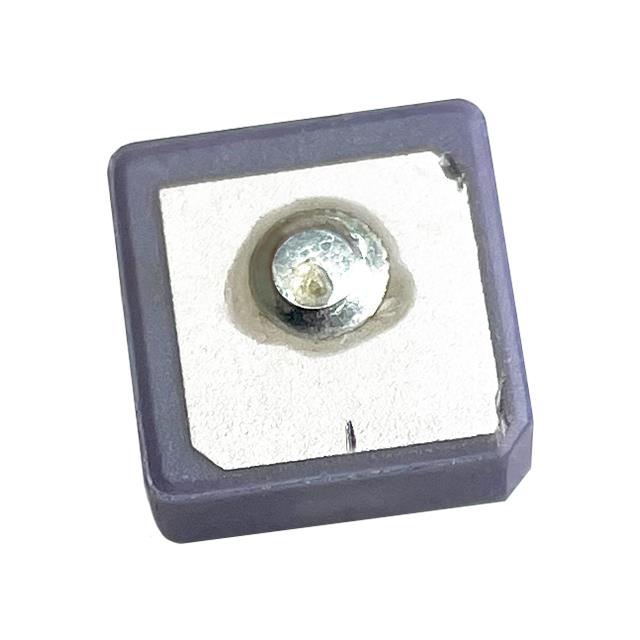

The YIC ATPG1590R1040A is a ceramic GNSS/GPS patch antenna designed for navigation applications. It operates within the frequency range of 1.575GHz to 1.608GHz, supporting GPS and GLONASS bands. The component features pin termination and adhesive mounting for secure installation. With a maximum height of 0.157 inches (4.00mm), it is suitable for compact RF designs requiring reliable satellite signal reception.

Antennas RF Feature Summary

• Utilizes a ceramic dielectric element for stable GNSS performance
• Supports both GPS and GLONASS navigation systems
• Features adhesive mounting for direct surface attachment

Antennas RF Applications

• GPS navigation modules
• GLONASS positioning devices
• GNSS receiver integration

Antennas RF Procurement Notes

Verify that the specific part number ATPG1590R1040A matches the required frequency specifications and mounting style. Confirm RoHS compliance status through official manufacturer documentation before procurement. Ensure compatibility with existing RF circuit layouts and adhesive application requirements.

Antennas RF Selection Notes

Select this model when single-band L1 support for GPS and GLONASS is required. Consider the ceramic construction for environmental stability. Evaluate the pin termination against available PCB footprint options. Verify the adhesive mounting method aligns with mechanical design constraints.

Antennas RF Part Context

This component belongs to the ATPG series of ceramic patch antennas from YIC. It is categorized under RF antennas for navigation purposes. The product is currently in active production status. It serves as a specialized passive component for satellite communication interfaces.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires verification of identical electrical parameters and physical dimensions.
