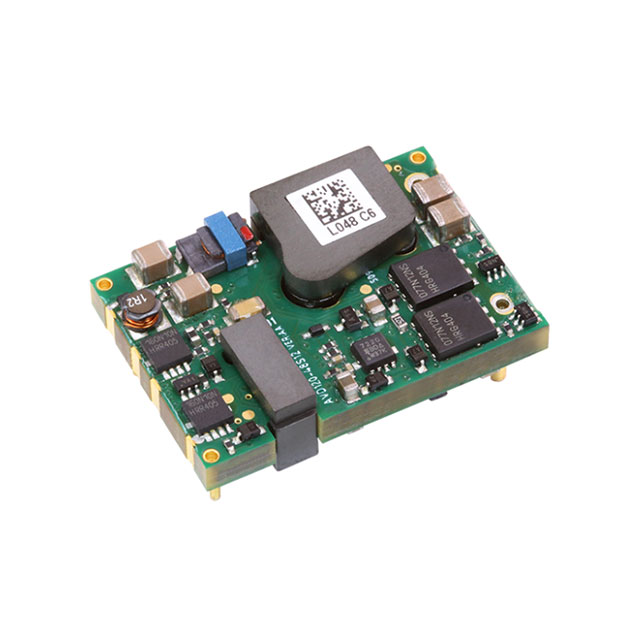

AVD100-48S05TL

AVD100-48S05TL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 5V 100W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AVD100-48S05TL

• Description：DC DC CONVERTER 5V 100W
• Series：AVO100 (100W)
• Mfr：ARTESYN / Advanced Energy
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：100 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：92.50%
• Mounting Type：Surface Mount
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.39" H (33.0mm x 22.9mm x 9.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AVD100-48S05TL
