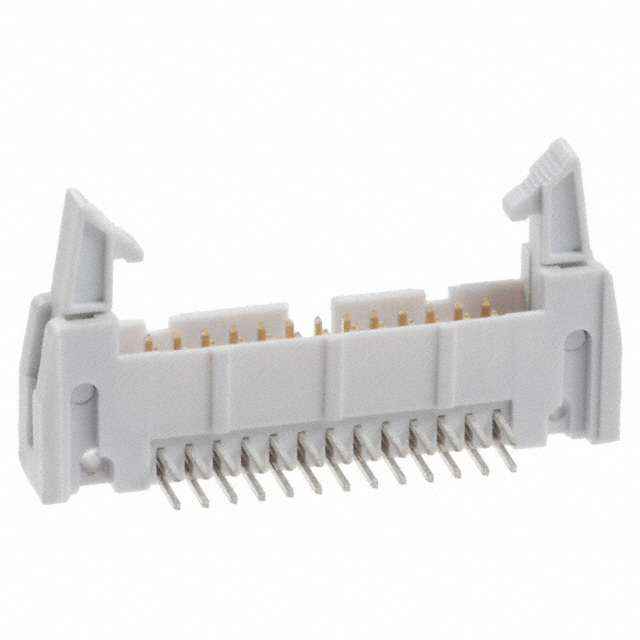

AWH 26A-0232-T

$2.18

Description：CONN HEADER R/A 26POS 2.54MM
Series：-
Mfr：Assmann WSW Components
Package：Tray

SKU:2a28fcbe25b8 Category: Headers, Male Pins Brand: Assmann WSW Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AWH 26A-0232-T is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is CONN HEADER R/A 26POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for AWH 26A-0232-T

Description：CONN HEADER R/A 26POS 2.54MM
Series：-
Mfr：Assmann WSW Components
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Lock/Eject Hooks, Long
Contact Length - Mating：-
Contact Length - Post：0.150" (3.81mm)
Overall Contact Length：-
Insulation Height：0.327" (8.30mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Keying Slot
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Gray
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for AWH 26A-0232-T

AWH 26A-0232-T

Headers, Male Pins Overview

The AWH 26A-0232-T is a rectangular header connector manufactured by Assmann WSW Components. It features 26 positions arranged in a dual-row configuration with a 2.54 mm (0.100 inch) pitch. The component utilizes right-angle mounting for through-hole PCB installation. Contacts are gold-plated copper alloy, rated for 1000V and 3A current. The housing is constructed from polybutylene terephthalate (PBT), supporting an operating temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle through-hole mounting design
Gold-plated contacts for reliable conductivity
Polybutylene terephthalate (PBT) housing material

Headers, Male Pins Applications

General-purpose electronic circuit interconnections
Industrial control system wiring
Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'A' against manufacturer documentation to confirm right-angle orientation and pin configuration. Ensure compatibility with mating connectors regarding row spacing and contact alignment. Confirm RoHS compliance status if required for specific regulatory environments.

Headers, Male Pins Selection Notes

Select this component when right-angle board mounting is required for 26-position connections. Verify that the 2.54 mm pitch matches the target PCB footprint. Ensure the 1000V voltage rating and 3A current capacity meet the application's electrical requirements.

Headers, Male Pins Part Context

This part belongs to the AWH series of rectangular headers from Assmann WSW Components. The series offers various configurations including straight and right-angle options with different position counts. This specific model provides a robust solution for high-density PCB connections requiring durable mechanical and electrical performance.
