B82111E0000C022

$0.36

Description：FIXED IND 22UH 3A 70 MOHM TH
Series：B82111E
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ba46e58b6c1f Category: Fixed Inductors Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

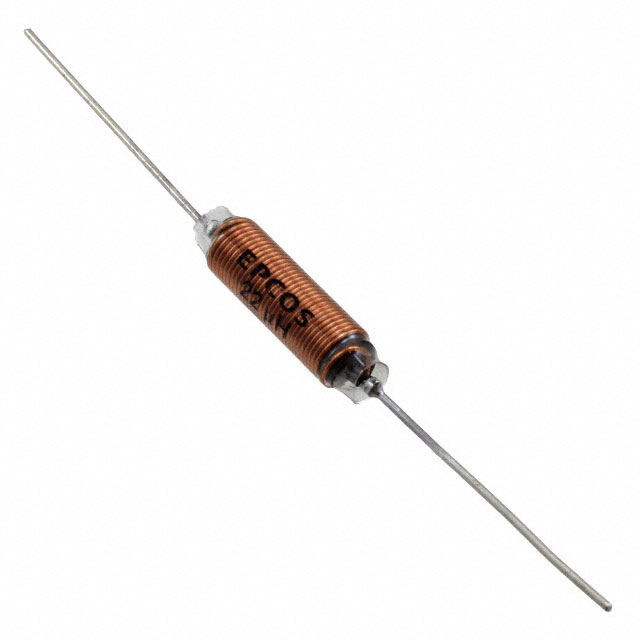

B82111E0000C022 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is FIXED IND 22UH 3A 70 MOHM TH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for B82111E0000C022

Description：FIXED IND 22UH 3A 70 MOHM TH
Series：B82111E
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：22 µH
Tolerance：±20%
Current Rating (Amps)：3:00 AM
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：70mOhm
Q @ Freq：-
Frequency - Self Resonant：110MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Through Hole
Package / Case：Axial
Supplier Device Package：-
Size / Dimension：0.276" Dia x 1.024" L (7.00mm x 26.00mm)
Height - Seated (Max)：-
Features：-

Fixed Inductors datasheet and documents for B82111E0000C022

B82111E0000C022

Fixed Inductors Overview

The B82111E0000C022 is an axial leaded VHF choke manufactured by EPCOS (TDK Electronics). It features a ferrite cylinder core with single-layer enamel copper wire winding. The component provides an inductance of 22 µH at a test frequency of 1 MHz, with a maximum DC current rating of 3 A and a DC resistance of 70 Ω. It has a maximum self-resonant frequency of 110 MHz and a rated voltage of 500 V AC/DC. The physical dimensions include a diameter of 7 mm and a lead pitch of 27.4 mm.

Fixed Inductors Feature Summary

High resonant frequency for VHF applications
Wide inductance range within the series
Design complies with EN 60938 standard

Fixed Inductors Applications

VHF choke circuits
Fixed inductor applications requiring high resonant frequency
General purpose filtering in electronic equipment

Fixed Inductors Procurement Notes

Verify component authenticity through authorized TDK or EPCOS distributors. Confirm that the ordering code matches B82111E0000C022 to ensure correct inductance and current ratings. Check datasheet revisions for any design changes. Ensure storage conditions comply with manufacturer guidelines to maintain performance integrity before installation.

Fixed Inductors Selection Notes

Select this component when a 22 µH inductance with a 3 A current rating is required in an axial package. Consider the 110 MHz self-resonant frequency limit for high-frequency operation. Compare against other B82111E variants if different inductance values or current capacities are needed. Verify PCB layout constraints regarding the 27.4 mm lead pitch and 7 mm diameter.

Fixed Inductors Part Context

This part belongs to the B82111E series of VHF chokes from EPCOS/TDK. The series offers various inductance values ranging from 7 µH to 1200 µH with rated currents from 0.1 A to 6 A. These components are designed for fixed inductor applications where high resonant frequencies and wide inductance ranges are necessary.
