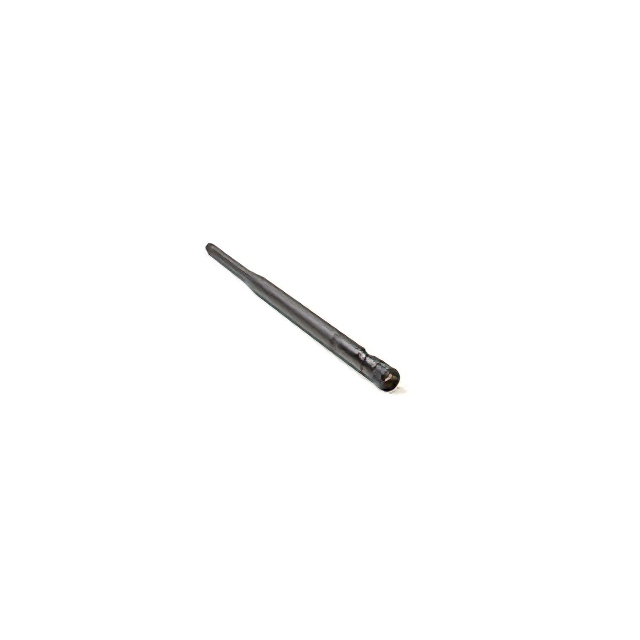

BB-AW-A24G-M5SRP

$7.23

Description：ANT WIFI 2.4 GHZ, STICK
Series：XR5i v2E
Mfr：Advantech Corporation
Package：Bulk

SKU:ca520f2cddee Category: RF Antennas Brand: Advantech Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB-AW-A24G-M5SRP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Advantech Corporation. Its product description is ANT WIFI 2.4 GHZ, STICK. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BB-AW-A24G-M5SRP

Description：ANT WIFI 2.4 GHZ, STICK
Series：XR5i v2E
Mfr：Advantech Corporation
Package：Bulk
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz, 2.45GHz
Frequency Range：-
Antenna Type：Whip, Right Angle
Number of Bands：2
VSWR：2
Return Loss：-14.49dB, -18.25dB
Gain：5.02dBi, 4.93dBi
Features：-
Termination：RP-SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.693" (170.00mm)
Applications：Wi-Fi
Power - Max：10 W

Antennas RF datasheet and documents for BB-AW-A24G-M5SRP

BB-AW-A24G-M5SRP

Antennas RF Overview

The Advantech BB-AW-A24G-M5SRP is a dedicated wireless antenna designed for IEEE 802.11 b/g/n/ac/ax Wi-Fi applications operating at the 2.4 GHz frequency band. This component utilizes a stick form factor, providing a compact and flexible solution for integrating wireless connectivity into embedded systems and industrial IoT devices. The unit supports standard Wi-Fi protocols to ensure reliable data transmission in various deployment environments.

Antennas RF Feature Summary

Supports IEEE 802.11 b/g/n/ac/ax Wi-Fi standards
Operates at the 2.4 GHz frequency band
Utilizes a compact stick form factor design

Antennas RF Applications

Embedded industrial computing systems
IoT gateway devices
Wireless access point integration

Antennas RF Procurement Notes

Verify the specific part number against official Advantech documentation to confirm compatibility with target hardware interfaces. Ensure that the 2.4 GHz specification aligns with regional regulatory requirements for wireless communications. Confirm connector type and cable length requirements prior to ordering to avoid integration issues.

Antennas RF Selection Notes

Select this component when a low-profile, stick-style antenna is required for 2.4 GHz Wi-Fi connectivity in space-constrained embedded designs. Consider environmental factors such as mounting orientation and signal obstruction when evaluating placement within the system enclosure.

Antennas RF Part Context

This antenna belongs to Advantech's networking accessories portfolio, supporting their range of edge computing and IoT solutions. It complements Advantech's industrial-grade hardware by providing essential wireless communication capabilities for data telemetry and remote management in automated environments.

Antennas RF Replacement Considerations

Consult official Advantech cross-reference lists for verified substitutes. Generic 2.4 GHz antennas may not match the impedance or gain specifications required for optimal performance in Advantech systems.
