BB1322WS

Antennas RF Overview

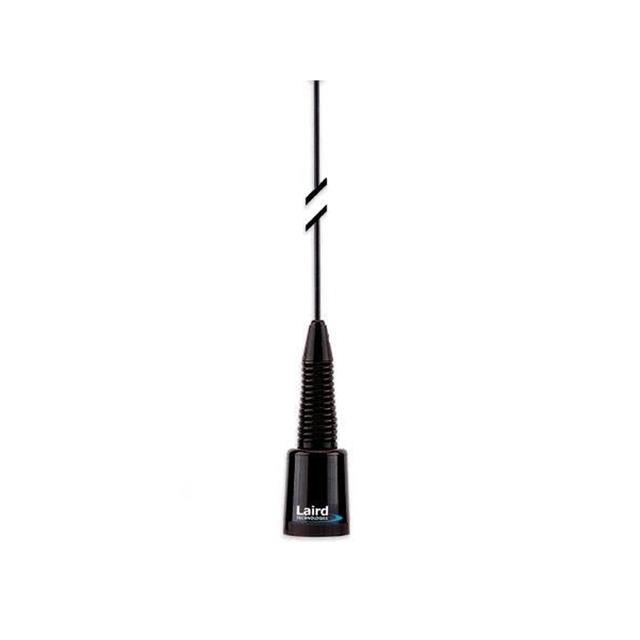

The TE Connectivity BB1322WS is a passive VHF whip antenna designed for vehicular applications. It operates within the 132 MHz to 174 MHz frequency range, centered at 153 MHz. The antenna features a straight mechanical form with an NMO base mount and provides 2.4 dBi gain. It supports a power rating of up to 200 W with a 50 Ohm impedance and a VSWR of 2:1. Constructed for durability, it meets IP67 standards and functions between -45°C and +85°C. The unit measures 980 mm in length and weighs 1.224 kg.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for mobile communication
• Robust elastomer spring construction for vibration resistance
• Weather-resistant design compliant with IP67 ingress protection
• Standardized NMO mounting interface for vehicle installation

Antennas RF Applications

• Public safety vehicle communications
• Transportation fleet management systems
• Utility service mobile operations
• Military mobile radio networks

Antennas RF Procurement Notes

Verify the specific datasheet revision when ordering, as TE Connectivity may update environmental compliance or mechanical tolerances over time. Confirm that the NMO base mount is compatible with the intended vehicle roof structure. Ensure the operating frequency aligns strictly with the 132-174 MHz band to avoid performance degradation. Check local import regulations regarding RF equipment classification before international shipment.

Antennas RF Selection Notes

Select this model for applications requiring reliable VHF coverage in harsh environments. The 200 W power handling capacity suits high-transmission scenarios. Consider the 980 mm length for clearance constraints. Compare against other BB series models if different frequency bands or gain levels are required. Verify connector compatibility with existing coaxial cabling systems.

Antennas RF Part Context

This component belongs to the TE Connectivity BB series of mobile coil antennas. These antennas utilize elastomer spring packages to absorb shock and vibration. The series is engineered for demanding vehicular platforms where signal integrity and physical durability are critical. It complements other TE connectivity solutions for complete vehicle communication architectures.

Antennas RF Replacement Considerations

Consult official TE Connectivity substitution guides for direct equivalents. Generic replacements may not match the IP67 rating or NMO mounting specifications. Verify that any alternative maintains the 132-174 MHz operational bandwidth and 50 Ohm impedance characteristics.
