BB1360W

$75.92

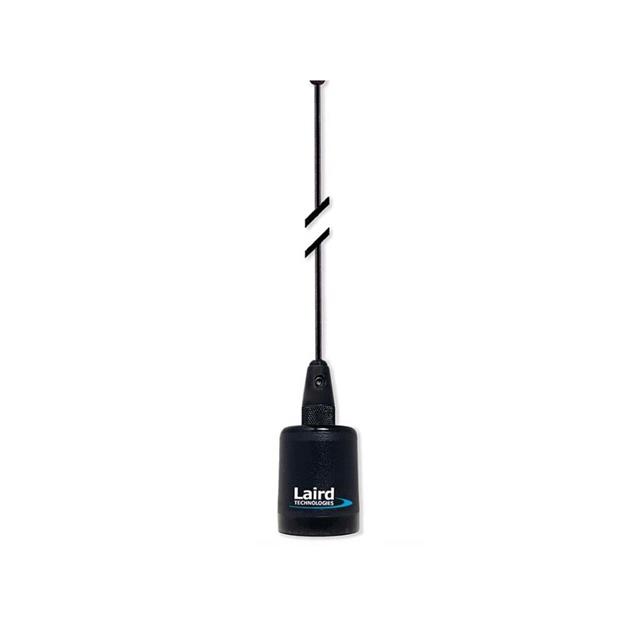

Description：RF ANT 155MHZ WHIP STR NMO MAG
Series：-
Mfr：TE Connectivity
Package：Bulk

SKU:d2a5bf74b50b Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB1360W is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 155MHZ WHIP STR NMO MAG. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BB1360W

Description：RF ANT 155MHZ WHIP STR NMO MAG
Series：-
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：-
Frequency Group：VHF (f < 300MHz)
Frequency (Center/Band)：155MHz
Frequency Range：136MHz ~ 174MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：4dBi
Features：-
Termination：NMO
Ingress Protection：-
Mounting Type：Magnetic, Trunk
Height (Max)：19.500" (495.30mm)
Applications：-
Power - Max：100 W

Antennas RF datasheet and documents for BB1360W

BB1360W

Antennas RF Overview

The TE Connectivity BB1360W is a discontinued VHF mobile whip antenna designed for wideband communication applications. It operates within the 136MHz to 174MHz frequency range, centered at 155MHz. The component features a straight whip design with an NMO magnetic mount interface and provides a gain of 4dBi. It supports a maximum power input of 100W and maintains a voltage standing wave ratio (VSWR) of 2. The physical height is 19.5 inches (495.30mm).

Antennas RF Feature Summary

Wideband operation across the 136-174 MHz spectrum suitable for VHF communications.
Straight whip antenna configuration optimized for mobile vehicle mounting.
NMO magnetic base installation allows for secure attachment without permanent modification.

Antennas RF Applications

Mobile two-way radio systems in vehicles.
Public safety and emergency service communications.
Commercial fleet telemetry and dispatch networks.

Antennas RF Procurement Notes

This specific part number is officially discontinued by the manufacturer as of November 2024. Procurement must focus on verified replacement components rather than original stock. Verify that substitute models maintain identical mechanical dimensions and electrical performance characteristics to ensure system compatibility.

Antennas RF Selection Notes

Engineers should evaluate the recommended replacement model BB1360WS for continued deployment. Selection criteria must prioritize matching the original 136-174 MHz bandwidth and NMO mounting interface. Confirm that the alternative unit meets the required 100W power handling and 4dBi gain specifications for the intended application environment.

Antennas RF Part Context

The BB1360W belongs to the TE Connectivity wideband mobile load coil antenna family. This series targets professional mobile communication needs requiring broad frequency coverage. The component represents a legacy solution within the broader RF antenna portfolio, now superseded by updated manufacturing iterations.

Antennas RF Replacement Considerations

The manufacturer recommends the BB1360WS as the direct substitute. This replacement maintains the same functional parameters and mounting style. Users should verify physical fitment and connector compatibility before integrating the new part into existing assemblies.
