BGYD806K

Antennas RF Overview

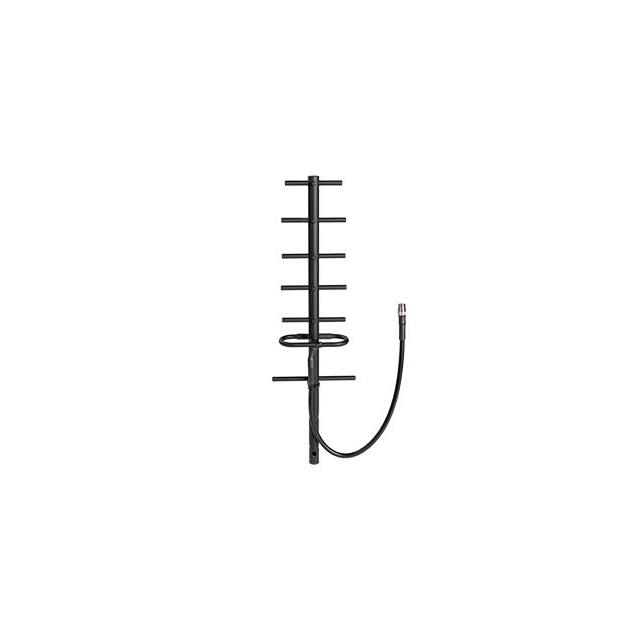

The Amphenol PCTEL BGYD806K is a 7-element Yagi antenna engineered for high-gain broadband performance within the 806 MHz to 896 MHz frequency range. It provides a gain of 10 dBd and supports a maximum power handling capacity of 200 watts. The unit features an N-type female connector and includes a 2-foot jumper cable. Designed for pole mounting, this antenna utilizes a black finish suitable for industrial and public safety applications.

Antennas RF Feature Summary

• High-gain broadband performance optimized for the 806-896 MHz spectrum
• Robust construction designed for demanding communication environments
• Integrated 2-foot jumper cable with N-type female interface

Antennas RF Applications

• Industrial wireless systems
• Public safety communications
• Wireless broadband networks

Antennas RF Procurement Notes

Verify the specific model suffix against official Amphenol PCTEL documentation to confirm exact cable length and connector specifications. Ensure environmental ratings align with installation requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm regulatory compliance for target regions before deployment.

Antennas RF Selection Notes

Select this component when directional coverage is required in the 806-896 MHz band. The 10 dBd gain suits long-range point-to-point links. Verify that the N-type female interface matches existing base station or radio equipment connectors. Consider the 200-watt power rating for high-output transmitter integration.

Antennas RF Part Context

This model belongs to the PCTEL BlueWave series of Yagi antennas. The series is characterized by robust mechanical design and reliable signal transmission in challenging conditions. The BGYD806K specifically targets narrowband operations within the specified UHF range, distinguishing it from wideband modular alternatives.

Antennas RF Replacement Considerations

Direct substitutes include other 7-element Yagi antennas covering 806-896 MHz with N-type female connectors. Verify physical dimensions and mounting hole patterns for compatibility. Check if alternative models offer identical 10 dBd gain and 200-watt power handling capabilities.
