BMLPV5000

Antennas RF Overview

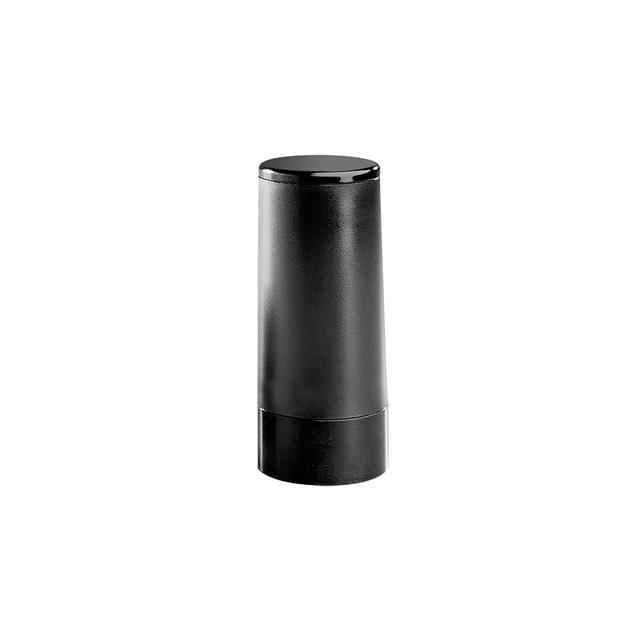

The BMLPV5000 is a low-profile multiband vertical antenna manufactured by Amphenol PCTEL. It operates within a frequency range of 600 MHz to 5000 MHz, supporting 2G, 3G, 4G LTE, and 5G NR technologies. The unit features an IP67 ingress protection rating for durability in harsh environments. It utilizes a bracket mount or through-hole installation method with a maximum height of 83.36 mm (3.280 inches). Designed for both indoor and outdoor deployment, the compact housing ensures minimal visual impact while maintaining high-performance connectivity for complex RF communication systems.

Antennas RF Feature Summary

• Low-profile design with compact housing suitable for aesthetic-sensitive installations
• Multiband capability covering 600 MHz to 5000 MHz for diverse cellular standards
• IP67 rated construction ensuring resistance to dust and water immersion
• Versatile mounting options including bracket and through-hole configurations

Antennas RF Applications

• Intelligent Transportation Systems requiring high-speed RF communication
• Indoor coverage solutions for 5G NR devices
• Outdoor cellular network infrastructure deployments
• Public safety and enterprise wireless connectivity networks

Antennas RF Procurement Notes

Verify that the specific order includes the correct mounting hardware and cable assembly if not included in the base package. Confirm environmental sealing requirements align with the IP67 specification for the intended installation site. Ensure compatibility with existing bracket structures or PCB layouts for through-hole variants. Cross-reference regulatory certifications required for the target market before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a low-profile form factor is critical for architectural integration or space-constrained environments. Choose the BMLPV5000 for applications demanding broad frequency coverage across multiple generations of mobile networks. Consider its IP67 rating for sites exposed to significant moisture or particulate matter. Evaluate the 600-5000 MHz bandwidth against specific carrier frequency allocations to ensure adequate spectrum support.

Antennas RF Part Context

This component belongs to the BMLPV series of low-profile antennas from Amphenol PCTEL. The series is engineered to provide reliable wireless connectivity for modern mobile devices and infrastructure. The BMLPV5000 specifically targets the convergence of legacy and next-generation cellular standards, offering a unified solution for operators managing mixed technology environments.

Antennas RF Replacement Considerations

The BMLPV5000-VP is a verified variant within the same product family. When substituting, verify that the voltage proofing or specific performance tolerances of the VP suffix meet the system requirements. Ensure mechanical dimensions and mounting interfaces remain compatible during any cross-model replacement.
