BMLPVDB800/1900HD

Antennas RF Overview

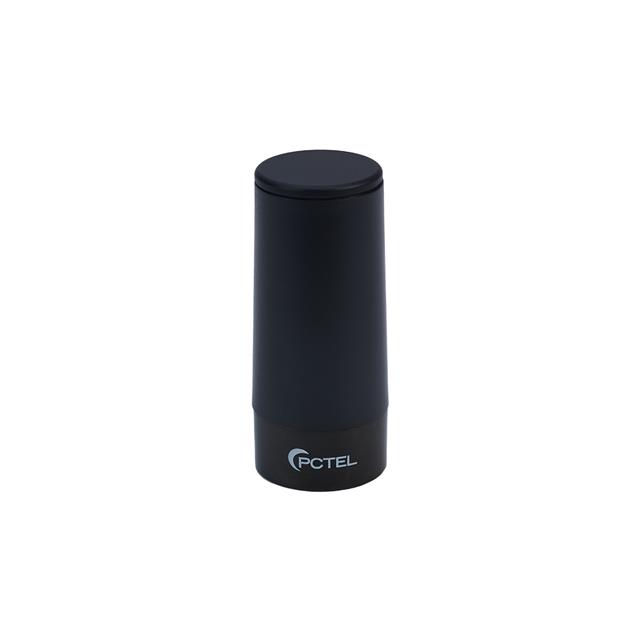

The Amphenol PCTEL BMLPVDB800/1900HD is a dual-band low-profile vertical mobile antenna designed for cellular and PCS applications. It operates within the frequency ranges of 806-960 MHz and 1710-1990 MHz, providing a gain of 4 dBi. The unit features an N female connector, 50 Ohms impedance, and a VSWR of 2.0:1. Rated for 100 W power with a working temperature range of -40°C to +85°C, it offers IP67 ingress protection and measures 2.400 inches (60.96 mm) in height.

Antennas RF Feature Summary

• Dual-band coverage supporting cellular and PCS frequency bands
• Low-profile vertical design optimized for mobile installations
• IP67 rated construction ensuring environmental durability

Antennas RF Applications

• Mobile cellular communications
• Personal Communications Services (PCS)
• Bluetooth connectivity systems
• Wi-Fi network infrastructure

Antennas RF Procurement Notes

Verify the exact suffix configuration when ordering, as variants such as HD may denote specific housing or mounting differences. Confirm connector type and cable requirements separately if not included. Check current lead times due to potential supply chain fluctuations. Ensure compatibility with vehicle ground planes for accurate gain performance. Review datasheet specifications for precise mechanical dimensions before integration.

Antennas RF Selection Notes

Select this model for applications requiring robust, low-profile antennas in mobile environments. The dual-band capability supports both legacy cellular and modern PCS standards. Consider the IP67 rating for harsh weather conditions. Verify that the N female connector matches existing cabling infrastructure. Evaluate ground plane size requirements to ensure optimal radiation pattern and gain stability during operation.

Antennas RF Part Context

This component belongs to the MLPV series of mobile antennas from Amphenol PCTEL. The series focuses on high-performance, reliable connectivity solutions for wireless devices. These antennas are engineered to support various protocols including Wi-Fi and Bluetooth while maintaining compact form factors suitable for space-constrained mobile platforms.

Antennas RF Replacement Considerations

Direct substitutes include other MLPV series models with similar frequency ranges. Verify mechanical mounting options such as NMO or stud mounts. Ensure replacement units maintain equivalent IP ratings and connector types. Cross-reference gain specifications to avoid signal degradation.
