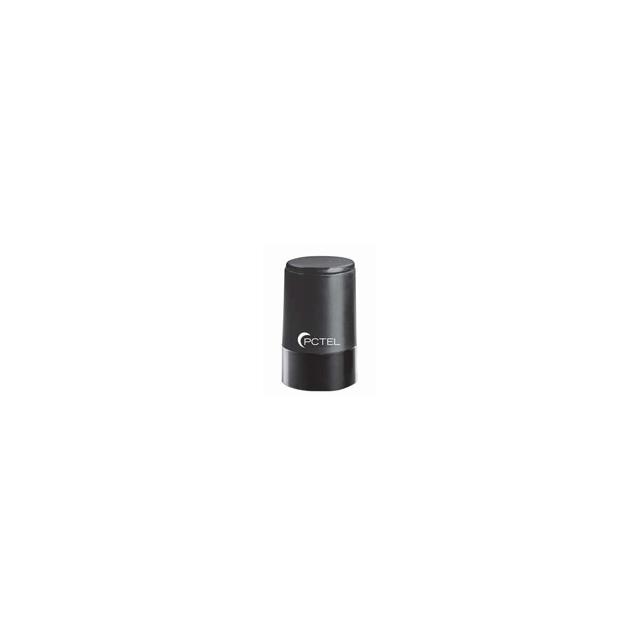

BMLPVMB/LTE

$36.41

Description：RF ANT 780MHZ/2.205MHZ OMNI NMO
Series：MLPV
Mfr：Amphenol PCTEL
Package：Bulk

SKU:eb47df7e974c Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BMLPVMB/LTE is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 780MHZ/2.205MHZ OMNI NMO. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BMLPVMB/LTE

Description：RF ANT 780MHZ/2.205MHZ OMNI NMO
Series：MLPV
Mfr：Amphenol PCTEL
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：780MHz, 2.205GHz
Frequency Range：600MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Antenna Type：Omni-Directional
Number of Bands：2
VSWR：2
Return Loss：9.54dB
Gain：3dBi
Features：-
Termination：NMO
Ingress Protection：IP66
Grade：-
Qualification：-
Mounting Type：NMO Mount
Height (Max)：35.039" (890.00mm)
Applications：2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi
Power - Max：150 W

Antennas RF datasheet and documents for BMLPVMB/LTE

BMLPVMB/LTE

Antennas RF Overview

The Amphenol PCTEL BMLPVMB/LTE is an active, omni-directional RF antenna designed for mobile and fixed applications. It operates within two frequency groups: UHF (300MHz ~ 1GHz) and UHF (2GHz ~ 3GHz), covering specific bands at 780MHz and 2.205GHz with a range of 600MHz to 960MHz and 1.71GHz to 2.7GHz. The unit features NMO mounting, supports up to 150W power, and achieves a gain of 3dBi with a VSWR of 2 and return loss of 9.54dB. It measures 890.00mm in height and carries IP66 ingress protection.

Antennas RF Feature Summary

Supports dual-band operation across cellular, LTE, and ISM frequencies
Provides omni-directional radiation pattern for consistent coverage
Engineered for ground-plane-independent performance in fixed or mobile setups
Constructed with IP66 rated housing for environmental durability

Antennas RF Applications

4G LTE networks
LMR/TETRA/P25 systems
LoRa and LPWAN deployments
Wi-Fi connectivity solutions

Antennas RF Procurement Notes

Verify the exact part number suffix against official documentation to ensure correct configuration. Confirm that the NMO mount interface matches the vehicle or structure requirements. Check RoHS compliance status if restricted substances are mandated. Ensure the operating temperature range aligns with the deployment environment. Validate the maximum power handling capability against the transmitter specifications to prevent damage.

Antennas RF Selection Notes

Select this model when dual-band coverage for LTE and legacy cellular standards is required without a ground plane. The high gain and omni-directional pattern suit applications needing broad coverage. Consider the physical height and NMO mounting constraints during installation planning. Verify compatibility with the intended frequency bands before procurement.

Antennas RF Part Context

This component belongs to the MLPV series by Amphenol PCTEL, focusing on low-profile, ground-plane-independent antennas. It targets industrial IoT, intelligent transportation, and precision agriculture sectors requiring reliable wireless communication in mobile environments.
