BS800SN-A

Antennas RF Overview

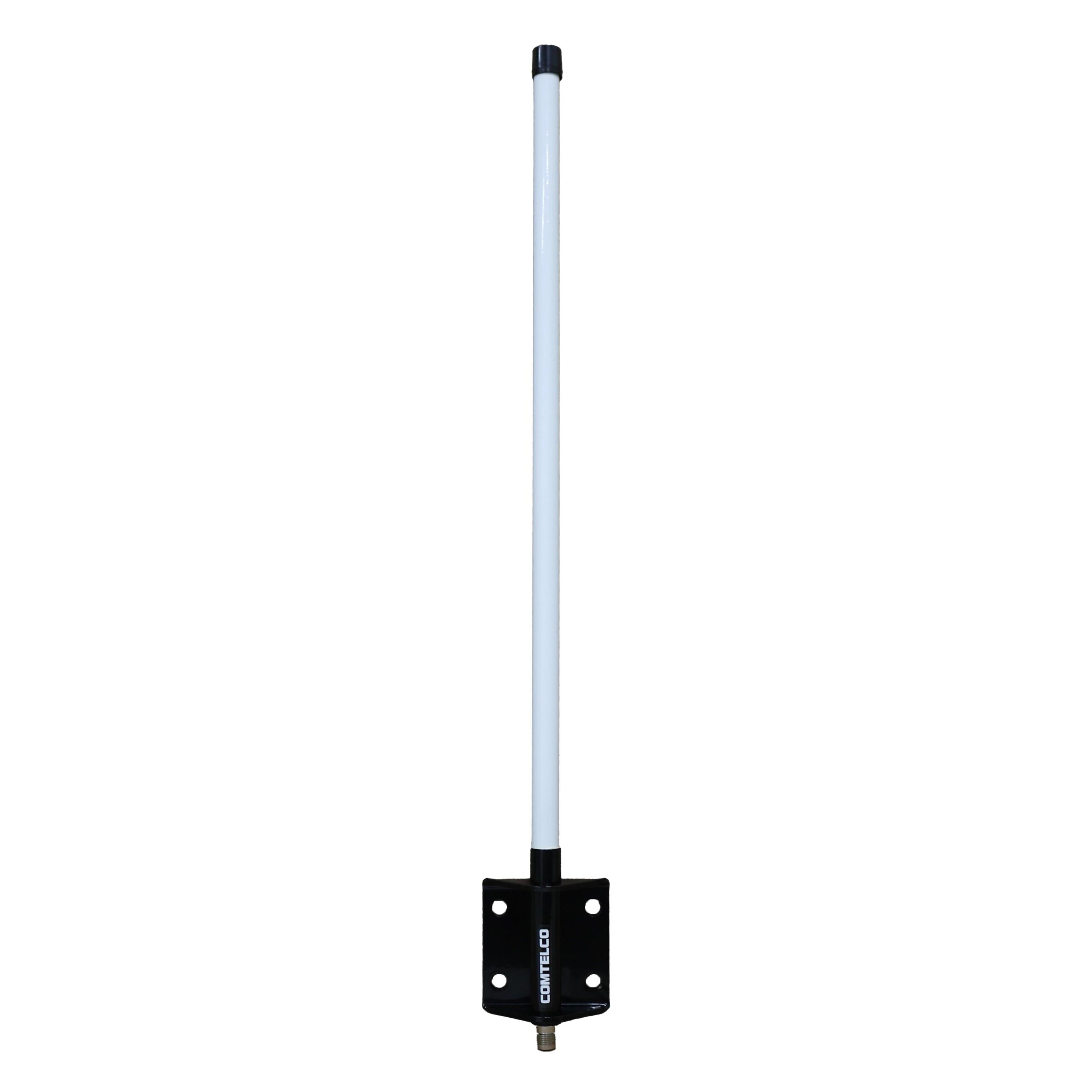

The BS800SN-A is a high-power base station antenna designed for the 800 MHz frequency band, specifically targeting Land Mobile Radio (LMR) applications. It features a fiberglass radome construction with an N-type female connector for secure cable attachment. The unit offers a gain of 4 dBd and maintains a Voltage Standing Wave Ratio (VSWR) suitable for efficient signal transmission. Packaged in bulk, this active component supports pole or wall mounting configurations.

Antennas RF Feature Summary

• High-power base station design optimized for reliable communication coverage
• Fiberglass radome construction providing environmental durability
• N-type female connector interface for standard RF cable integration

Antennas RF Applications

• Land Mobile Radio (LMR) base station deployments
• Public safety communication infrastructure
• Fleet management network support

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector polarity before integration. Ensure that the mounting hardware matches the specified pole or wall installation requirements. Confirm that the operating environment aligns with the fiberglass radome specifications for long-term reliability.

Antennas RF Selection Notes

Select this model when a dedicated 800 MHz LMR solution is required for base station coverage. Consider the 4 dBd gain specification relative to site height and interference conditions. Verify compatibility with existing N-type cabling infrastructure to ensure seamless system integration without additional adapters.

Antennas RF Part Context

This component belongs to the Mobile Mark Antenna Solutions portfolio, which specializes in antennas ranging from 30 MHz to 7.2 GHz. The product line includes solutions for cellular, WiFi, GPS, and VHF/UHF bands, supporting applications such as smart cities, utilities, and public transit networks.

Antennas RF Replacement Considerations

Check for the BS800SN-C variant if a different configuration is needed. Verify exact electrical parameters against current inventory parts to ensure functional equivalence in critical LMR base station roles.
