BSA150B

Antennas RF Overview

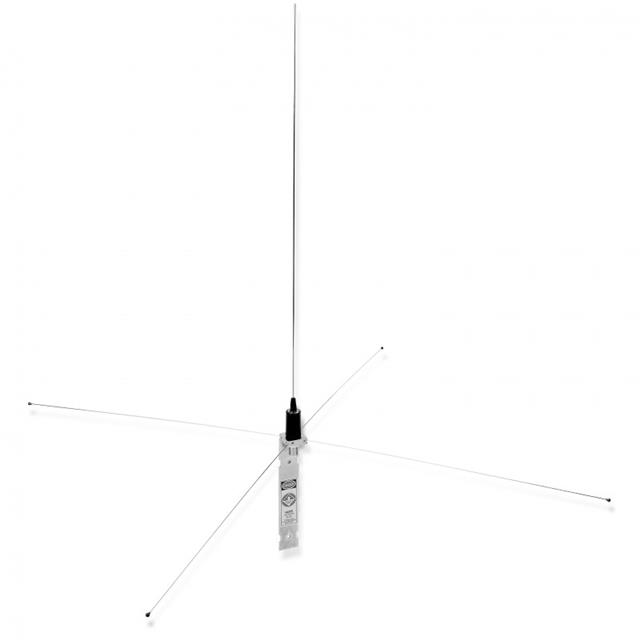

The BSA150B is a VHF base station antenna manufactured by Pulse Electronics, designed for the 144-174 MHz frequency range. It features a 5/8 wavelength design with a gain of 5.2 dBi and a maximum power rating of 200 watts. The unit has a maximum height of 51.75 inches and utilizes a UHF female connector.

Antennas RF Feature Summary

• Omni-directional radiation pattern suitable for general base station coverage
• Robust construction with a solid enclosure bulk surrounding the RF components
• Optimized for outdoor deployment in harsh environmental conditions

Antennas RF Applications

• VHF base station installations
• General purpose outdoor RF communication systems
• Public safety radio networks
• Marine or land mobile radio infrastructure

Antennas RF Procurement Notes

Verify the specific connector type and mounting hardware requirements against the official datasheet before ordering. Confirm that the installation environment supports the specified wind load and power handling capabilities. Ensure compatibility with existing coaxial cable assemblies and transceiver interfaces to prevent signal loss or damage.

Antennas RF Selection Notes

Select this model when a high-gain VHF solution is required for fixed site applications. The 5.2 dBi gain provides extended range compared to standard quarter-wave antennas. Consider the physical dimensions and weight for structural support needs. Verify regulatory compliance for the intended geographic region regarding frequency usage.

Antennas RF Part Context

This component belongs to the Pulse Larsen antenna series, known for performance in professional communications. It serves as an alternative to generic VHF whip antennas where higher gain and durability are necessary. The product line targets industrial and commercial sectors requiring reliable long-distance transmission.

Antennas RF Replacement Considerations

Direct substitutes may include other 144-174 MHz base station antennas from Pulse or compatible manufacturers. Ensure replacement units match the 5.2 dBi gain and 200W power rating. Verify mechanical fit for the existing mast or pole mount structure.
