BSA406C

$80.65

Description：ANTENNA WHIP BS-WHP 4.5DB 406-4
Series：-
Mfr：Pulse Electronics
Package：Box

SKU:397a24f0f95f Category: RF Antennas Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BSA406C is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is ANTENNA WHIP BS-WHP 4.5DB 406-4. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BSA406C

Description：ANTENNA WHIP BS-WHP 4.5DB 406-4
Series：-
Mfr：Pulse Electronics
Package：Box
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：413MHz
Frequency Range：406MHz ~ 420MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：-
Return Loss：-10dB
Gain：5.6dBi
Features：-
Termination：UHF Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：32.000" (812.80mm)
Applications：-
Power - Max：200 W

Antennas RF datasheet and documents for BSA406C

BSA406C

Antennas RF Overview

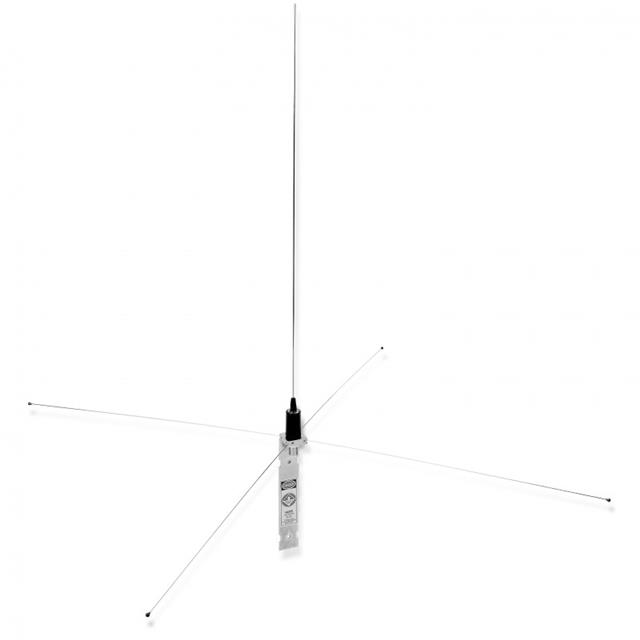

The BSA406C is a base station antenna manufactured by Pulse Electronics, designed for UHF communications within the 406-420 MHz frequency band. It features a center frequency of 413 MHz and provides a gain of 5.6 dBi. The antenna is rated for 200W power handling and utilizes a whip design with a radial base configuration. It includes mounting hardware and is packaged in boxes.

Antennas RF Feature Summary

Professional 5/8 over 1/2 wave base station antenna design
Whip structure with integrated radial base
Includes necessary mounting hardware

Antennas RF Applications

UHF base station communications
Professional radio systems operating in the 406-420 MHz range

Antennas RF Procurement Notes

Verify that the specific order includes all required mounting hardware as indicated in official documentation. Confirm compatibility with the intended installation environment for the specified UHF frequency band. Ensure the power rating aligns with system requirements before deployment.

Antennas RF Selection Notes

Select this model for applications requiring a dedicated base station antenna in the 406-420 MHz spectrum. The 5.6 dBi gain and 200W rating suit professional communication needs. Consider the physical dimensions and mounting requirements associated with the radial base design.

Antennas RF Part Context

This component belongs to the base station antennas category from Pulse Electronics. It is part of a series designed for reliable UHF communication infrastructure. The product is currently active and available for procurement through authorized channels.
