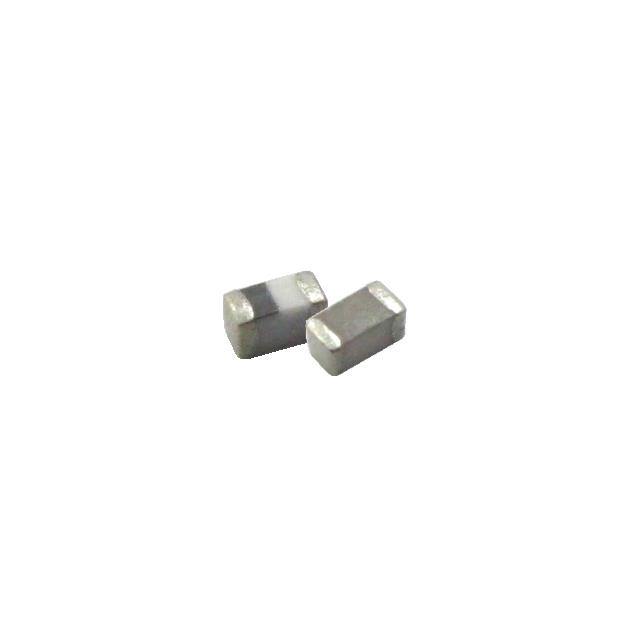

BSCH0010050515NJCS

Description：INDUCTOR RF
Series：BSCH
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:62f960f7f380 Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BSCH0010050515NJCS is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR RF. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for BSCH0010050515NJCS

Description：INDUCTOR RF
Series：BSCH
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ceramic
Inductance：15 nH
Tolerance：±5%
Current Rating (Amps)：300 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：500mOhm Max
Q @ Freq：8 @ 100MHz
Frequency - Self Resonant：2.8GHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric)
Supplier Device Package：402
Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)：0.024" (0.60mm)
Features：-

Fixed Inductors datasheet and documents for BSCH0010050515NJCS

BSCH0010050515NJCS

Fixed Inductors Overview

The BSCH0010050515NJCS is a fixed multilayer RF inductor manufactured by Pulse Electronics, designed for surface-mount applications. It features a ceramic core and operates within a temperature range of -55°C to +125°C. The component has an inductance of 15 nH with a tolerance of ±5%. Its maximum DC resistance is 500 mOhms, and it supports a rated current of 300 mA. The Q factor is specified as 8 at a test frequency of 100 MHz, with a self-resonant frequency of 2.8 GHz. The physical dimensions are 1.00 mm x 0.50 mm x 0.60 mm (0402 metric package).

Fixed Inductors Feature Summary

Multilayer ceramic construction suitable for high-frequency RF circuits.
Unshielded design optimized for compact PCB layouts.
Surface-mount technology compatible with standard SMD processes.

Fixed Inductors Applications

RF signal processing circuits
High-frequency impedance matching networks
General-purpose RF filtering applications

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct packaging configuration. Confirm that the required current rating and inductance tolerance align with the target circuit design specifications before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a low-inductance value is required for high-frequency operation. Ensure the PCB layout accommodates the 0402 footprint and verify thermal management requirements given the 300 mA current limit and operating temperature range.

Fixed Inductors Part Context

This part belongs to the BSCH series of SMD multilayer RF inductors from Pulse Electronics. The series includes various ceramic and ferrite chip modules intended for both low- and high-frequency applications, providing standardized solutions for RF circuit integration.
