BT25B0150

Antennas RF Overview

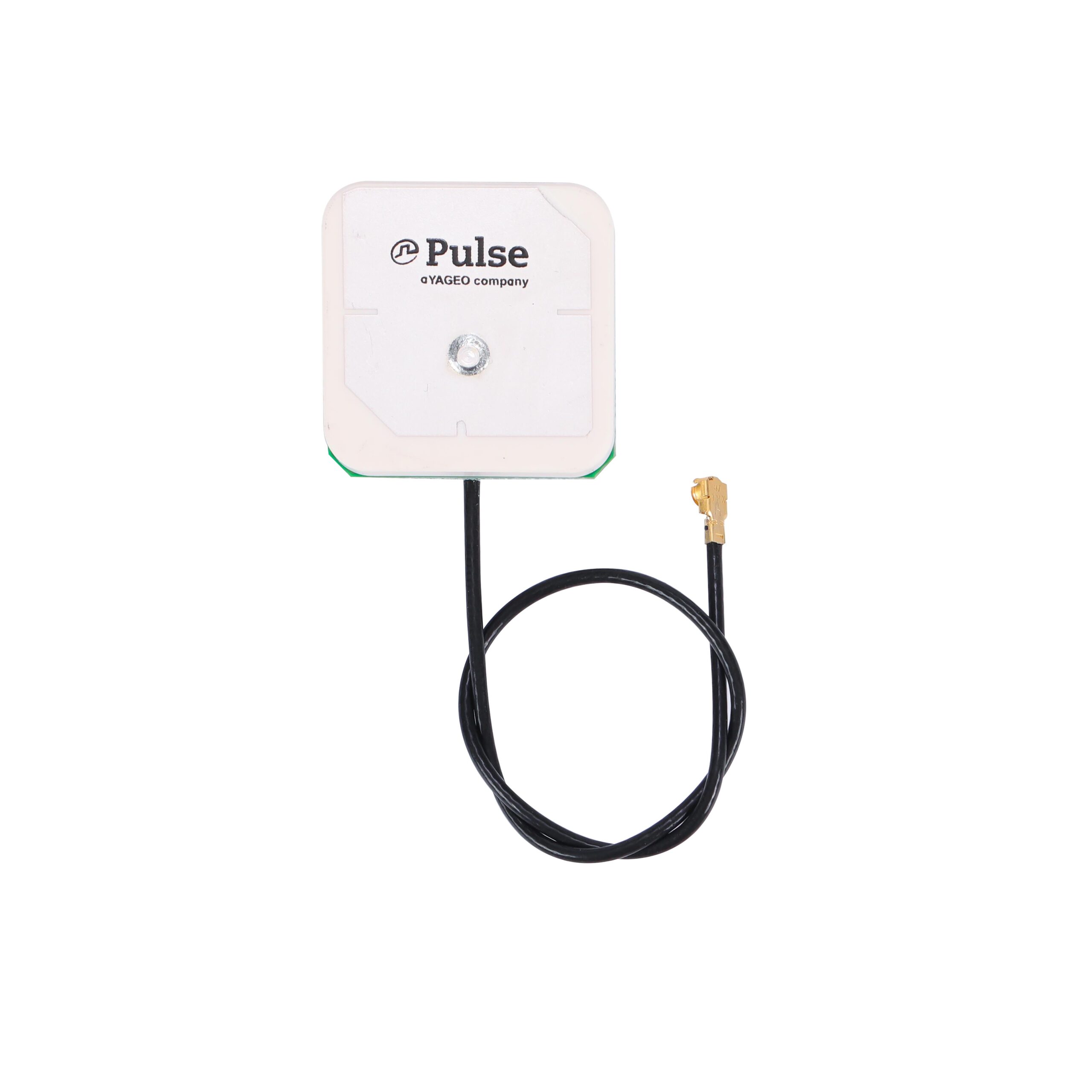

The BT25B0150 is a ceramic patch RF antenna manufactured by Pulse Electronics, designed for wireless communication applications. It operates within the 2.4 GHz to 2.5 GHz frequency range, supporting Bluetooth, ISM, and Wi-Fi protocols. The component features a gain of 3.5 dBic and a return loss of -6dB. It utilizes an I-PEX MHF connector interface and employs adhesive mounting for secure installation. The antenna exhibits right-hand circular polarization and maintains a 50 ohm impedance.

Antennas RF Feature Summary

• Supports Bluetooth, ISM, and Wi-Fi standards in the 2.4–2.5 GHz band
• Utilizes ceramic patch construction with adhesive mounting
• Features I-PEX MHF connector interface for integration

Antennas RF Applications

• Bluetooth device connectivity
• ISM band industrial applications
• Wi-Fi enabled consumer electronics

Antennas RF Procurement Notes

Verify the specific datasheet version and connector compatibility before procurement. Confirm that the I-PEX MHF interface matches the host board design. Ensure the adhesive mounting method aligns with the mechanical assembly requirements. Check for any recent updates to the product specifications or compliance certifications.

Antennas RF Selection Notes

Select this model for compact wireless designs requiring ceramic patch stability. The 3.5 dBic gain suits short-range communication needs. Verify space constraints against the physical dimensions. Ensure the operating environment supports the specified temperature range. Confirm impedance matching with the RF circuitry.

Antennas RF Part Context

This component belongs to Pulse Electronics' RF antenna portfolio. It addresses the demand for reliable wireless connectivity in small form factors. The ceramic patch design offers durability and consistent performance across the designated frequency bands.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
