C2580NL

Pulse Transformers Overview

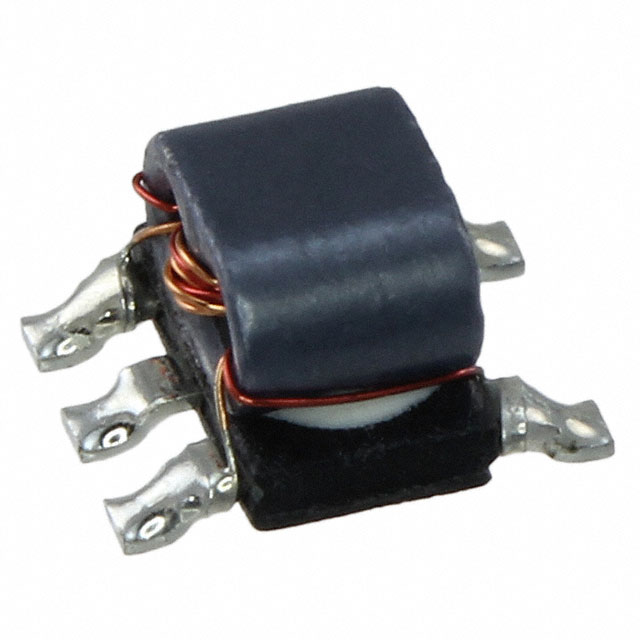

The C2580NL is a single-channel, surface-mount pulse transformer manufactured by Pulse Electronics Corporation. It features a 1:1 turns ratio and is designed for operation within the 1-100 MHz frequency range. The component utilizes a compact SMT package with dimensions of 0.169 inches in length and 0.106 inches in width (4.30mm x 2.69mm). This device serves as an RF transformer suitable for high-speed signal transmission applications requiring isolation and impedance matching.

Pulse Transformers Feature Summary

• Single-channel configuration with 1:1 turns ratio
• Surface mount technology for automated assembly
• Operates within 1-100 MHz frequency range

Pulse Transformers Applications

• High-speed data line signal coupling
• RF circuit impedance matching
• Network interface isolation

Pulse Transformers Procurement Notes

Verify the specific revision status, as this part number may be listed as obsolete in certain distributor catalogs. Confirm that the required frequency range and physical footprint align with the design specifications before finalizing procurement. Ensure compatibility with existing PCB layouts and soldering profiles for surface-mount components.

Pulse Transformers Selection Notes

Select this component when a single-channel, 1:1 isolated transformer is required for frequencies up to 100 MHz. Consider the small form factor for space-constrained designs. Evaluate alternative active or passive solutions if higher channel counts or different voltage ratings are necessary for the specific application requirements.

Pulse Transformers Part Context

Pulse Electronics Corporation specializes in magnetic components for data communication and power applications. The C2580NL belongs to their portfolio of pulse transformers used in network infrastructure. These components support the integrity of digital signals across various communication standards, ensuring reliable data transfer in modern electronic systems.

Pulse Transformers Replacement Considerations

Check for direct cross-reference part numbers from other manufacturers offering identical 1:1 ratios and 100 MHz bandwidth. Verify pinout compatibility and mechanical dimensions to ensure seamless integration without redesigning the printed circuit board.
