C27

Antennas RF Overview

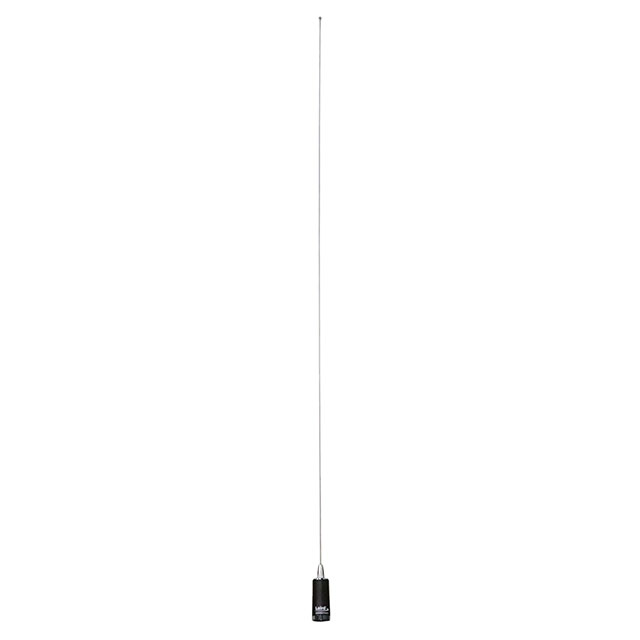

The TE Connectivity C27 is a passive vehicle antenna designed for the 27-31 MHz frequency band, specifically targeting CB radio applications. It operates as a quarter-wave base-loaded mobile antenna with a straight whip configuration and an NMO base mount. The unit features a black finish and is constructed to withstand harsh environmental conditions typical of vehicular use.

Antennas RF Feature Summary

• Straight whip design for reliable signal transmission
• NMO base mount for secure vehicle installation
• Base-loaded structure optimized for mobile environments

Antennas RF Applications

• CB Radio communication systems
• Mobile vehicle installations
• Industrial equipment telemetry

Antennas RF Procurement Notes

Verify the specific datasheet version and physical dimensions against the target mounting location. Confirm that the NMO base interface matches existing vehicle fixtures. Ensure the operating frequency range aligns with local regulatory requirements for CB radio usage before finalizing procurement.

Antennas RF Selection Notes

Select this model for applications requiring a standard quarter-wave mobile antenna in the 27-31 MHz range. Consider the NMO mounting style compatibility with the vehicle chassis. Evaluate the need for a base-loaded design versus other configurations based on available space and aesthetic requirements.

Antennas RF Part Context

This component belongs to the family of vehicle antennas manufactured by TE Connectivity. It serves as a dedicated solution for mobile two-way radio communications, providing a standardized interface for integration into commercial and industrial vehicles requiring robust RF connectivity.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fitment and electrical specifications when considering alternative models from other manufacturers.
