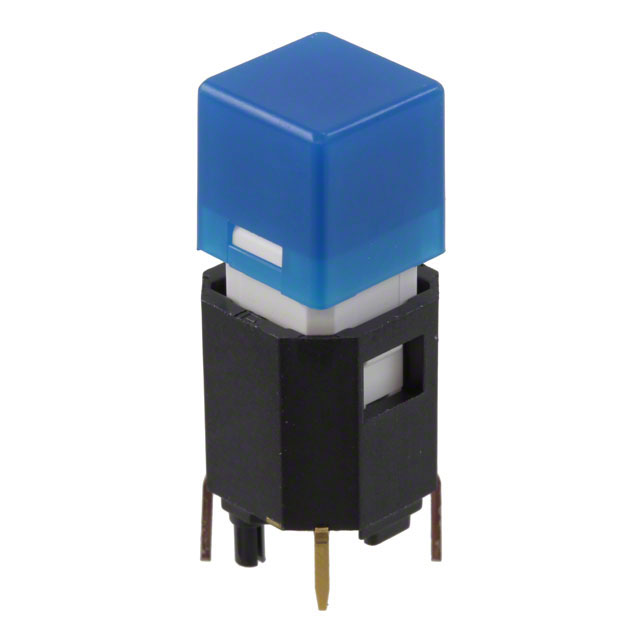

Pushbutton Switches CFPB-1CC-5B2W product image

CFPB-1CC-5B2W

Description：SWITCH PUSH SPST-NO 1MA 20V
Series：CFPB
Mfr：Nidec Components Corporation
Package：Tray

SKU:cfa0ee1b0922 Category: Pushbutton Switches Brand: Nidec Components Corporation

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CFPB-1CC-5B2W is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH PUSH SPST-NO 1MA 20V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for CFPB-1CC-5B2W

Description：SWITCH PUSH SPST-NO 1MA 20V
Series：CFPB
Mfr：Nidec Components Corporation
Package：Tray
Mounting Type：Through Hole
Type：Standard, Illuminated
Circuit：SPST-NO
Switch Function：Off-Mom
Current Rating (Amps)：1mA (DC)
Actuator Type：Square, Button
Actuator Marking：No Marking
Color - Actuator/Cap：Blue
Illumination Type, Color：LED, Green
Illumination Voltage (Nominal)：2.1 VDC
Termination Style：PC Pin
Ingress Protection：-
Features：-
Panel Cutout Dimensions：-
Operating Temperature：-10°C ~ 60°C
Voltage Rating - DC：20 V
Voltage Rating - AC：-

Pushbutton Switches datasheet and documents for CFPB-1CC-5B2W

CFPB-1CC-5B2W
