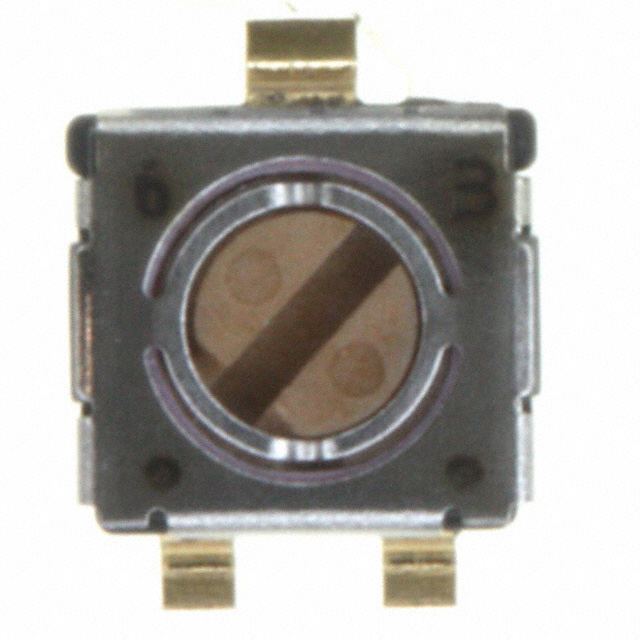

Dip Switches CS-4-12XTB product image

CS-4-12XTB

$1.50

Description：SWITCH ROTARY DIP SPDT 0.1A 16V
Series：CS-4
Mfr：Nidec Components Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9951f4752090 Category: DIP Switches Brand: Nidec Components Corporation

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CS-4-12XTB is listed in the Dip Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH ROTARY DIP SPDT 0.1A 16V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for CS-4-12XTB

Description：SWITCH ROTARY DIP SPDT 0.1A 16V
Series：CS-4
Mfr：Nidec Components Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Circuit：SPDT
Number of Positions：2
Current Rating (Amps)：100mA
Voltage Rating：16VDC
Actuator Type：Rotary for Tool
Actuator Level：Flush, Recessed
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.091" (2.30mm)
Mounting Type：Surface Mount
Termination Style：Gull Wing
Pitch：-
Washable：Yes
Features：-
Operating Temperature：-25°C ~ 70°C

Dip Switches datasheet and documents for CS-4-12XTB

CS-4-12XTB
