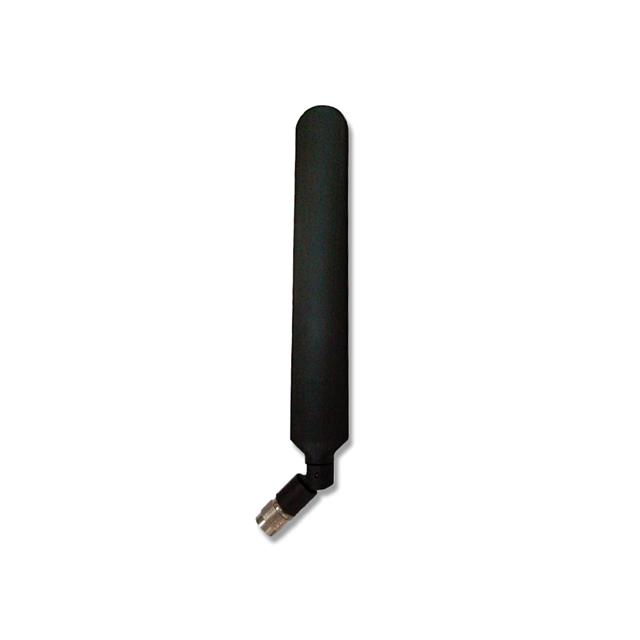

DBA6927C1-FTNCM

$13.78

Description：RF ANT 700MHZ/850MHZ WHIP TILT
Series：-
Mfr：TE Connectivity
Package：Bulk

SKU:9d36f3693f85 Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DBA6927C1-FTNCM is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 700MHZ/850MHZ WHIP TILT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for DBA6927C1-FTNCM

Description：RF ANT 700MHZ/850MHZ WHIP TILT
Series：-
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Antenna Type：Whip, Tilt
Number of Bands：2
VSWR：2.5
Return Loss：-
Gain：0.5dBi, 2.2dBi
Features：-
Termination：TNC Male
Ingress Protection：-
Mounting Type：Connector Mount
Height (Max)：9.016" (229.00mm)
Applications：AWS, GSM, LTE, PCS, UMTS, WiMax™
Power - Max：3 W

Antennas RF datasheet and documents for DBA6927C1-FTNCM

DBA6927C1-FTNCM

Antennas RF Overview

The DBA6927C1-FTNCM is a dual-band whip antenna manufactured by TE Connectivity, designed for broadband wireless applications. It operates across two frequency ranges: 698MHz to 960MHz and 1.71GHz to 2.7GHz. The unit features a TNC male connector for secure attachment and supports mounting via a connector interface. Maximum gain values are specified as 0.5dBi in the lower band and 2.2dBi in the upper band, with a maximum Voltage Standing Wave Ratio (VSWR) of 2.5. The antenna handles a maximum power input of 3W and has a maximum height of 229.00mm.

Antennas RF Feature Summary

Dual-band operation supporting multiple cellular and WiMax protocols
Tilt-adjustable whip design for directional optimization
Connector-mounted installation using TNC male interface

Antennas RF Applications

AWS network infrastructure
GSM base stations
LTE access points
PCS communication systems
UMTS small cell deployments

Antennas RF Procurement Notes

Verify component status prior to ordering, as this part may be subject to discontinuance or obsolescence notices. Confirm that the TNC male connector type matches existing system interfaces. Ensure environmental ratings meet operational requirements. Cross-reference official documentation for any recent product change notifications or substitute part recommendations from TE Connectivity.

Antennas RF Selection Notes

Select this model when dual-band coverage spanning sub-1GHz and 2GHz spectrum is required for compact installations. The tilt capability allows for mechanical beam adjustment without electronic steering. Verify that the 3W power rating aligns with transmitter output levels. Consider the physical dimensions and connector type for integration into routers or small base stations.

Antennas RF Part Context

This component belongs to the DBA series of broadband antennas from TE Connectivity. It is engineered for multiprotocol support in wireless communication environments. The specific FTNCM suffix denotes the TNC male connector variant and packaging configuration within the broader family of blade and whip antennas.
