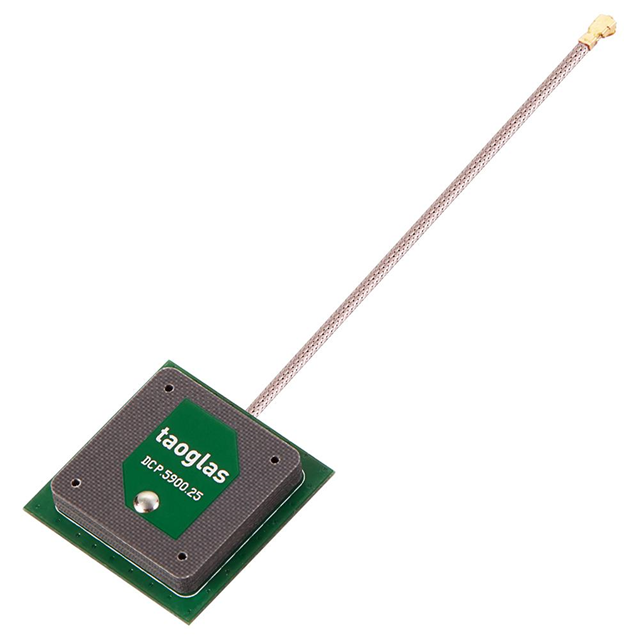

DCPP.25A.07.0150E

Description：5.9GHZ DSRC / C-V2X PATCH ANTENN
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:024f16d43ff4 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DCPP.25A.07.0150E is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is 5.9GHZ DSRC / C-V2X PATCH ANTENN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for DCPP.25A.07.0150E

Description：5.9GHZ DSRC / C-V2X PATCH ANTENN
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：-
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：5.8875GHz
Frequency Range：5.85GHz ~ 5.925GHz
Antenna Type：Ceramic Patch
Number of Bands：1
VSWR：-
Return Loss：-6dB
Gain：4.2dBi
Features：Cable - 150mm
Termination：I-PEX MHF2
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.197" (5.00mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for DCPP.25A.07.0150E

DCPP.25A.07.0150E

Antennas RF Overview

The DCPP.25A.07.0150E is a general-purpose ceramic patch RF antenna manufactured by Taoglas Limited, designed for surface mount applications. It operates within the 5.8875GHz frequency range, specifically targeting DSRC and C-V2X bands. The component features a gain of 4.2dBi and utilizes an I-PEX MHF2 connector interface. A 150mm cable is integrated with the unit to facilitate connection. The antenna is constructed using ceramic materials suitable for robust environmental conditions.

Antennas RF Feature Summary

Utilizes a ceramic patch design for reliable signal transmission in dedicated short-range communication systems.
Integrates a 150mm cable with an I-PEX MHF2 connector for direct system interfacing.
Engineered for surface mount installation to support compact electronic device architectures.

Antennas RF Applications

DSRC (Dedicated Short-Range Communications) systems
C-V2X (Cellular Vehicle-to-Everything) communications
General purpose automotive RF connectivity

Antennas RF Procurement Notes

Verify current availability status as this part number has been officially announced for End of Life. Confirm compatibility with I-PEX MHF2 connectors during integration planning. Review official Taoglas documentation for final electrical specifications and mechanical dimensions prior to implementation.

Antennas RF Selection Notes

Select this component for applications requiring a pre-cabled ceramic patch solution at 5.8875GHz. Ensure the host system supports the specific I-PEX MHF2 interface type. Consider the 150mm cable length when designing the physical layout and routing constraints within the target enclosure.

Antennas RF Part Context

This model belongs to the Taoglas RF Antenna portfolio, focusing on specialized wireless communication solutions. It complements other ceramic patch antennas by offering a ready-to-use cabled configuration. The product line targets automotive and industrial sectors requiring stable high-frequency performance.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult manufacturer announcements for potential obsolescence management strategies or alternative series recommendations from Taoglas Limited.
