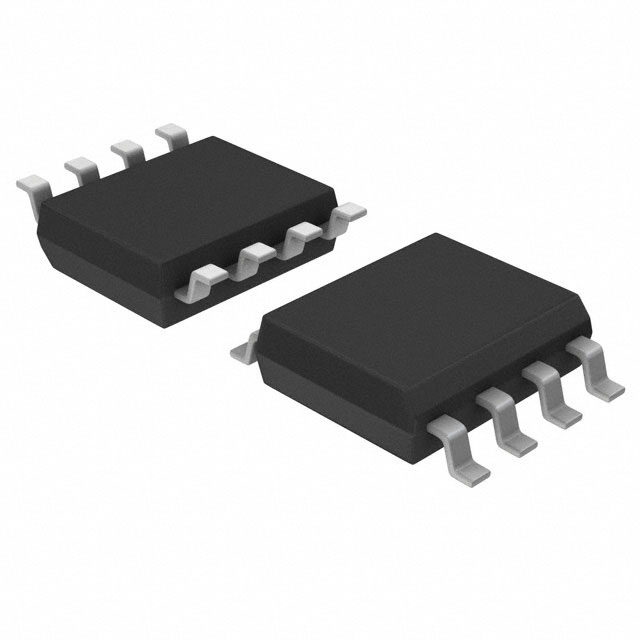

DG417LEDY-T1-GE4

$0.97

Description：IC SWITCH SPST X 1 9OHM 8SO
Series：-

SKU:d135cb6a7934 Category: Analog Switches, Multiplexers, Demultiplexers Brand: Vishay Siliconix

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DG417LEDY-T1-GE4 is listed in the Analog Switches, Multiplexers, Demultiplexers range at ChipApex. The manufacturer field lists Vishay Siliconix. Its product description is IC SWITCH SPST X 1 9OHM 8SO. Review the specifications below when checking this part for your BOM.

Analog Switches, Multiplexers, Demultiplexers specifications for DG417LEDY-T1-GE4

Description：IC SWITCH SPST X 1 9OHM 8SO
Series：-
Mfr：Vishay Siliconix
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Circuit：SPST
Multiplexer/Demultiplexer Circuit：1:01
On-State Resistance (Max)：9Ohm
Channel-to-Channel Matching (ΔRon)：-
Voltage - Supply, Single (V+)：3V ~ 16V
Voltage - Supply, Dual (V±)：±3V ~ 8V
Switch Time (Ton, Toff) (Max)：40ns, 35ns
-3db Bandwidth：-
Charge Injection：26pC
Channel Capacitance (CS(off), CD(off))：11pF, 32pF
Current - Leakage (IS(off)) (Max)：10nA
Crosstalk：-72dB @ 1MHz
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.154", 3.90mm Width)
Supplier Device Package：8-SO
Number of Circuits：1
Grade：-
Qualification：-

Analog Switches, Multiplexers, Demultiplexers datasheet and documents for DG417LEDY-T1-GE4

DG417LEDY-T1-GE4

Analog Switches, Multiplexers, Demultiplexers Overview

The DG417LEDY-T1-GE4 is a monolithic CMOS single-pole single-throw (SPST) analog switch manufactured by Vishay Siliconix. It operates from a +3 V to +16 V single supply or ±3 V to ±8 V dual supply. The device features a typical on-resistance of 6 Ω at +12 V, with a maximum of 9 Ω across the full temperature range. Switching speeds are characterized by a turn-on time of 20 ns and a turn-off time of 15 ns. It utilizes an 8-pin narrow SOIC package and supports an operating temperature range from -40 °C to +85 °C.

Analog Switches, Multiplexers, Demultiplexers Feature Summary

CMOS technology providing low power dissipation and fast switching speed
Break-before-make switching action for signal integrity
Control logic input tolerance exceeding positive supply voltage
Pin-for-pin compatibility with industry standard DG417 devices

Analog Switches, Multiplexers, Demultiplexers Applications

Data acquisition systems
Medical instruments
Precision instruments
Communications systems
Automated test equipment

Analog Switches, Multiplexers, Demultiplexers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status via official documentation as suffixes indicate environmental specifications. Ensure the ordering part number matches the required package type and temperature rating before finalizing procurement orders.

Analog Switches, Multiplexers, Demultiplexers Selection Notes

Select this component when a low on-resistance SPST switch is required for single or dual supply applications. Verify that the 6 Ω resistance meets circuit requirements at the specific operating voltage. Consider the 8-pin SOIC footprint for PCB layout constraints and ensure thermal management accommodates the specified power dissipation limits.

Analog Switches, Multiplexers, Demultiplexers Part Context

This part belongs to the DG417LE series, which includes companion devices like the DG418LE and DG419LE. These components share similar electrical characteristics but differ in configuration, such as normally open or normally closed contacts. The LE designation indicates enhanced low-voltage operation compared to legacy versions.
