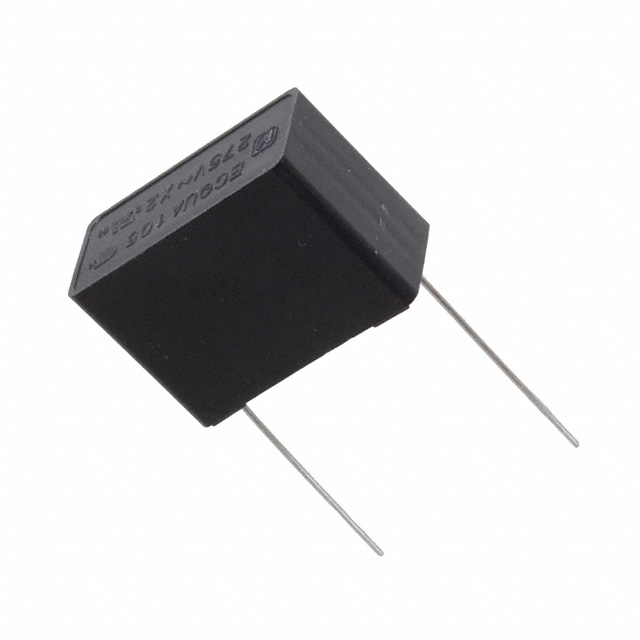

ECQ-UAAF105T1

ECQ-UAAF105T1 is listed in the Film Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP FILM 1UF 10% 275VAC RAD. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for ECQ-UAAF105T1

• Description：CAP FILM 1UF 10% 275VAC RAD
• Series：ECQ-UA
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Capacitance：1 µF
• Tolerance：±10%
• Voltage Rating - AC：275V
• Voltage Rating - DC：-
• Dielectric Material：Polypropylene (PP), Metallized
• Operating Temperature：-40°C ~ 110°C
• Mounting Type：Through Hole
• Package / Case：Radial
• Size / Dimension：1.024" L x 0.472" W (26.00mm x 12.00mm)
• Height - Seated (Max)：0.768" (19.50mm)
• Termination：PC Pins
• Lead Spacing：0.886" (22.50mm)
• Applications：Automotive; EMI, RFI Suppression
• Ratings：AEC-Q200, X2
• Features：-

Film Capacitors datasheet and documents for ECQ-UAAF105T1
