ELC3005PO

Overview

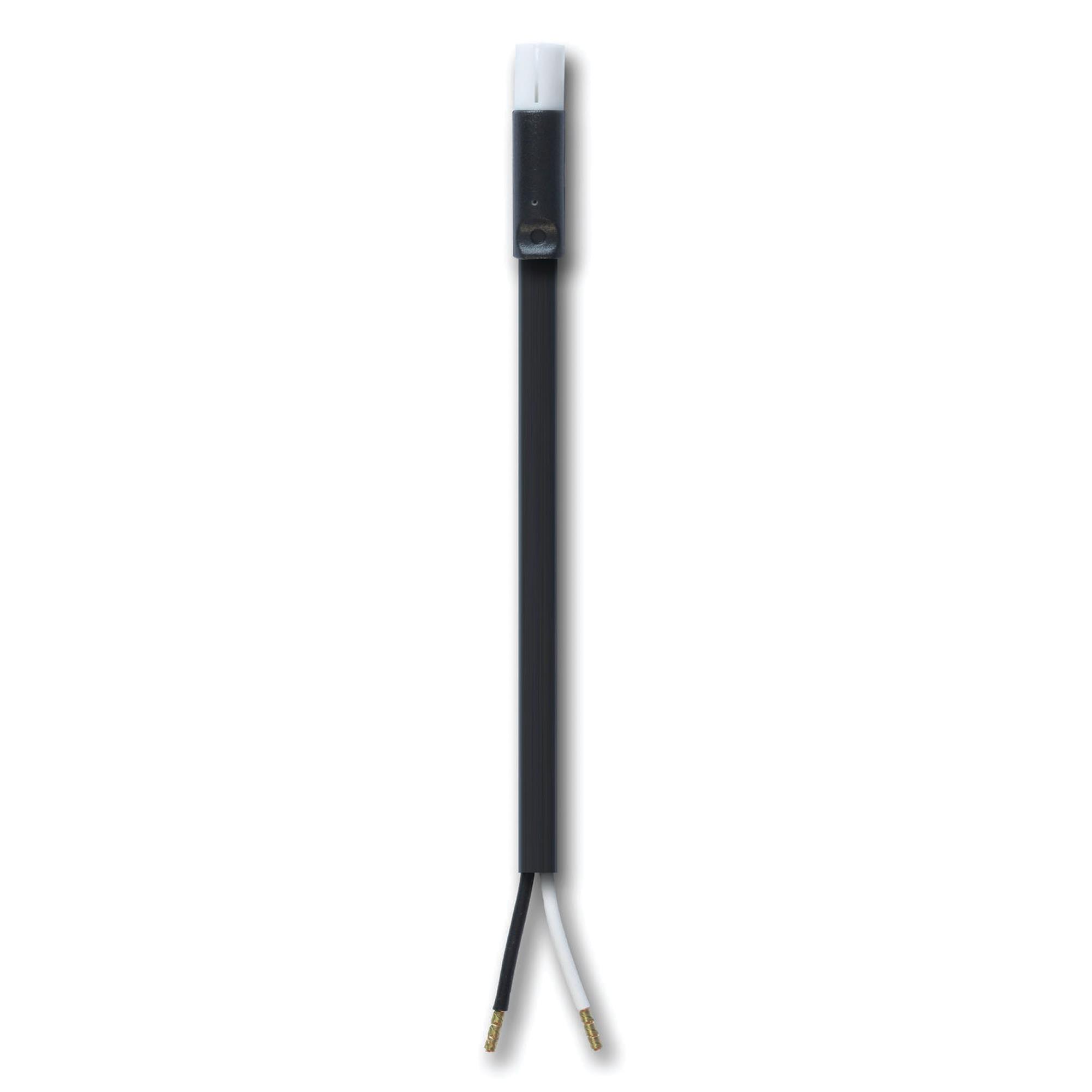

The ELC3005PO is a pre-fabricated connecting cable designed for nVent HOFFMAN EL series LED enclosure lights. It features an orange copper conductor with a length of 3 meters. The cable includes an integrated door switch mechanism to facilitate power infeed and through-wiring connections. This component allows for the easy mounting of LED lighting fixtures within electrical enclosures, ensuring reliable connectivity for operating voltages compatible with the associated LED light systems.

Feature Summary

• Pre-fabricated design eliminates manual wiring for faster installation
• Integrated door switch enables automatic power control based on enclosure access
• Orange color coding identifies the specific cable variant within the system

Applications

• Power infeed connections for EL series LED enclosure lights
• Through-wiring setups between multiple enclosure components
• Mounting LED lighting fixtures in industrial electrical enclosures

Procurement Notes

Verify compatibility with the specific EL series LED light model intended for installation. Confirm that the 3-meter length meets the spatial requirements of the enclosure layout. Ensure the operating voltage of the connected LED fixture aligns with the cable's rated specifications. Check for any regional regulatory compliance requirements regarding copper conductors and insulation materials before finalizing procurement.

Selection Notes

Select this cable when using nVent HOFFMAN EL series LED lights requiring a pre-assembled connection solution. Choose this option over custom wiring to reduce assembly time and potential connection errors. Consider the 3-meter length constraint against the physical distance between the power source and the light fixture. Verify that the orange color coding does not conflict with existing wiring standards in the application.

Part Context

This part belongs to the nVent HOFFMAN accessory line for EL series LED enclosure lighting. It serves as a specialized interconnect component rather than a standalone lighting unit. The product complements the main LED fixtures by providing a standardized interface for power and switching functions within the enclosure environment.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific pre-fabricated cable configuration. Custom wiring solutions may serve as functional alternatives but require separate sourcing of switches and connectors.
