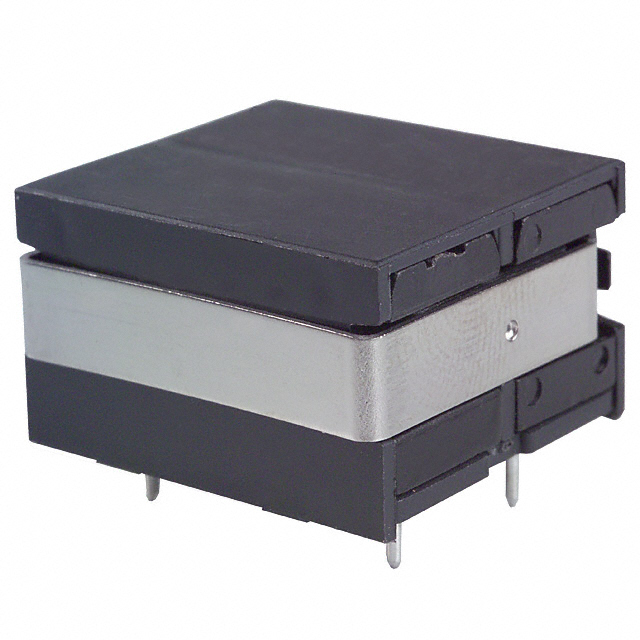

ELF-23F010A

Description：CMC 1A 2LN TH
Series：F
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:14c07effb440 Category: Common Mode Chokes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ELF-23F010A is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 1A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for ELF-23F010A

Description：CMC 1A 2LN TH
Series：F
Mfr：Panasonic Electronic Components
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：328mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.945" L x 0.906" W (24.00mm x 23.00mm)
Height (Max)：0.551" (14.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for ELF-23F010A

ELF-23F010A

Common Mode Chokes Overview

The ELF-23F010A is a two-line common-mode choke manufactured by Panasonic Electronic Components, designed for through-hole mounting. It features a maximum current rating of 1A and a typical DC resistance (DCR) of 328mOhm. The component dimensions are approximately 24mm in length, 15mm in width, and 28mm in height. This device is classified as RoHS non-compliant due to lead content.

Common Mode Chokes Feature Summary

Two-line configuration for differential signal filtering
Through-hole mounting technology for PCB integration
Low DC resistance for minimal signal loss

Common Mode Chokes Applications

Common mode noise suppression in electronic circuits
Signal line protection in industrial equipment
EMI filtering in consumer electronics

Common Mode Chokes Procurement Notes

Verify RoHS compliance status prior to procurement, as this specific part number is listed as non-compliant. Confirm that the manufacturer accepts lead-based components for your intended application. Ensure the through-hole footprint matches your PCB design specifications before ordering.

Common Mode Chokes Selection Notes

Select this component when a low-current (1A), two-line common-mode choke is required for through-hole assembly. Consider the 328mOhm DCR impact on circuit performance. Verify compatibility with existing EMI requirements and physical space constraints on the target printed circuit board.

Common Mode Chokes Part Context

This component belongs to Panasonic's ELF series of common-mode chokes. These filters are engineered for suppressing electromagnetic interference in low-current applications. The series offers various current ratings and impedance characteristics to suit different signal integrity needs across industrial and consumer sectors.

Common Mode Chokes Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Panasonic directly for potential obsolescence management or equivalent alternatives within their portfolio.
