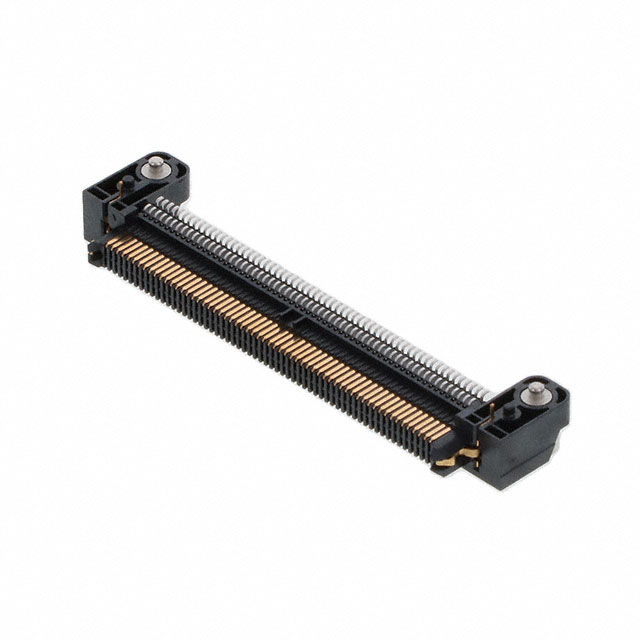

ERM8-060-01-L-D-RA-L-K-TR

ERM8-060-01-L-D-RA-L-K-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR 120POS R/A SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for ERM8-060-01-L-D-RA-L-K-TR

• Description：CONN HDR 120POS R/A SMD GOLD
• Series：Edge Rate™ ERM8
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header, Center Strip Contacts
• Number of Positions：120
• Pitch：0.031" (0.80mm)
• Number of Rows：2
• Mounting Type：Surface Mount, Right Angle
• Features：Board Guide, Latches, Mounting Flange, Pick and Place
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Mated Stacking Heights：-
• Height Above Board：0.246" (6.25mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for ERM8-060-01-L-D-RA-L-K-TR
