ESM-06-101

Power Line Filter Modules Overview

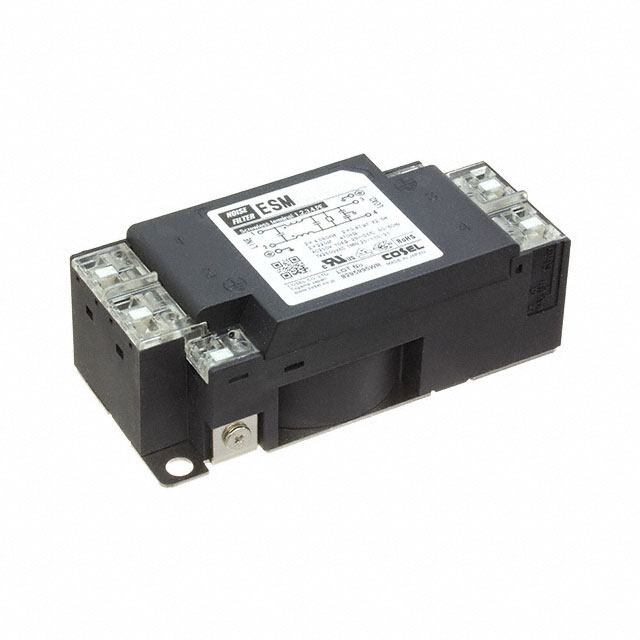

The Cosel ESM-06-101 is a single-phase power line filter designed for chassis mounting. It supports voltage ratings of 250 VAC and 250 VDC with a current rating of 6 A. The unit features screw termination and includes a capacitance of 100 pF. Leakage current is specified at 12.5 uA. The component operates within a frequency range of 10 kHz to 10 MHz and weighs approximately 320 g.

Power Line Filter Modules Feature Summary

• Provides common mode noise filtering for AC and DC power lines
• Designed for secure chassis mounting applications
• Utilizes screw terminal connections for reliable electrical interface

Power Line Filter Modules Applications

• General purpose EMI/EMC suppression in industrial equipment
• Power conditioning for sensitive electronic instrumentation
• Noise reduction in single-phase power distribution systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation when ordering, as variants such as ESM-06-101-D exist with different mounting styles like DIN rail. Confirm that the required installation method matches the chassis mount configuration of the base model. Ensure compatibility with the target voltage and current specifications before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust single-stage filtering in a chassis-mount form factor. Consider the 6 A current capacity and 250 VAC/VDC ratings against system requirements. Evaluate the need for screw terminals versus other connection types if space constraints dictate alternative mounting solutions.

Power Line Filter Modules Part Context

This component belongs to the ESM series of power line filter modules manufactured by Cosel USA, Inc. The series offers various configurations for EMC/EMI suppression. The ESM-06-101 specifically addresses general-purpose filtering needs with a focus on durability and standard industrial interfaces.

Power Line Filter Modules Replacement Considerations

The ESM-06-101-D is a documented variant within the same product family. Verify if the DIN rail mounting style of the -D suffix is acceptable as a substitute for the standard chassis mount version.
