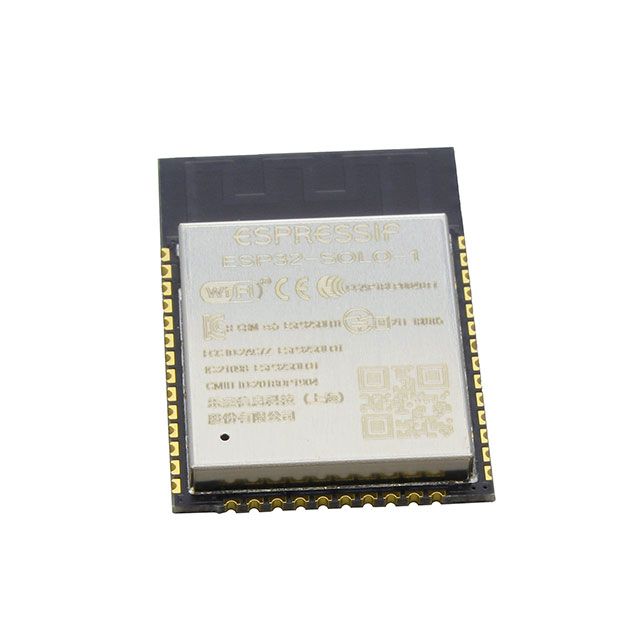

ESP32-SOLO-1-N4

ESP32-SOLO-1-N4 is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Espressif Systems. Its product description is RF TXRX MOD BT WIFI TH SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for ESP32-SOLO-1-N4

• Description：RF TXRX MOD BT WIFI TH SMD
• Series：ESP32
• Mfr：Espressif Systems
• Package：Tape & Reel (TR),Cut Tape (CT)
• RF Family/Standard：Bluetooth, WiFi
• Protocol：802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
• Modulation：-
• Frequency：2.4GHz ~ 2.5GHz
• Data Rate：150Mbps
• Power - Output：20dBm
• Sensitivity：-98dBm
• Serial Interfaces：ADC, GPIO, I2C, I2S, SDIO, SPI, PWM, UART
• Antenna Type：Integrated, Trace
• Utilized IC / Part：ESP32-S0WD
• Memory Size：4MB Flash, 448kB ROM, 536kB SRAM
• Voltage - Supply：2.3V ~ 3.6V
• Current - Receiving：-
• Current - Transmitting：-
• Mounting Type：Surface Mount
• Operating Temperature：-40°C ~ 85°C
• Package / Case：38-SMD Module

RF Transceiver Modules And Modems datasheet and documents for ESP32-SOLO-1-N4
