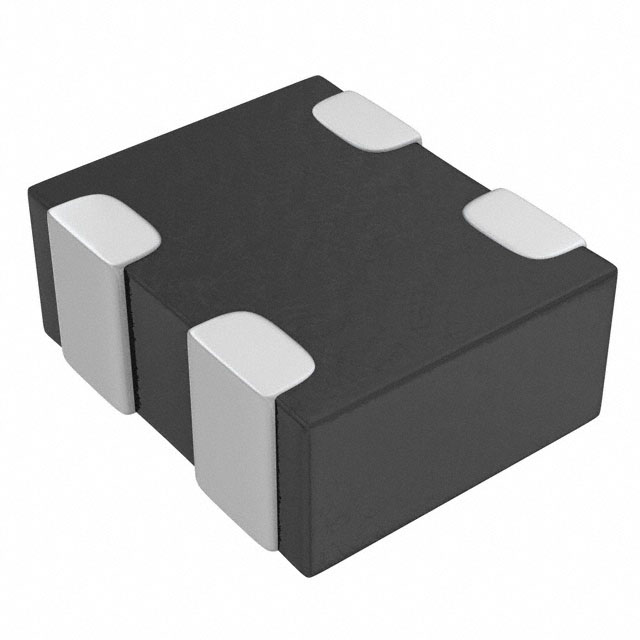

EXC-24CG900U

$0.48

Description：CMC 100MA 2LN 90 OHM SMD
Series：EXC24
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:738865ebb2e0 Category: Common Mode Chokes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EXC-24CG900U is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 100MA 2LN 90 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for EXC-24CG900U

Description：CMC 100MA 2LN 90 OHM SMD
Series：EXC24
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：3Ohm
Voltage Rating - DC：5V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)：0.024" (0.60mm)
Package / Case：0504 (1210 Metric), 4 Lead
Inductance @ Frequency：-
Impedance @ Frequency：90 Ohms @ 100 MHz

Common Mode Chokes datasheet and documents for EXC-24CG900U

EXC-24CG900U

Common Mode Chokes Overview

The Panasonic EXC-24CG900U is a surface-mount common mode noise filter designed for high-speed digital circuits. It features a 90 Ohm impedance with a 25% tolerance and supports a maximum DC current of 100 mA. The component has a maximum DC resistance of 1.75 Ohms and operates within a temperature range of -40°C to +85°C. Housed in a compact 0504 (1210 metric) package measuring 1.25 mm x 1 mm x 0.5 mm, it provides effective EMI suppression for low-voltage applications.

Common Mode Chokes Feature Summary

Provides common mode noise filtering for high-speed signal lines
Compact surface-mount design suitable for space-constrained PCBs
Optimized for low-voltage and high-frequency operations

Common Mode Chokes Applications

High-speed data interface protection
Low-voltage power line filtering
Compact consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific suffix 'G' against official Panasonic documentation to confirm the exact current rating and impedance characteristics, as variations exist within the EXC series. Confirm RoHS compliance status directly from the manufacturer's datasheet before integration. Ensure the selected package size matches the intended PCB footprint requirements.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise suppression for signals operating at low voltages. The 100 mA current rating limits suitability for high-power applications. Verify that the 90 Ohm impedance aligns with the target frequency spectrum of the noise to be filtered. Ensure the SMD package dimensions fit the available board space.

Common Mode Chokes Part Context

This part belongs to the Panasonic EXC series of common mode chokes. These components are engineered for EMI suppression in electronic devices. The series offers various impedance and current ratings to suit different circuit requirements. The EXC-24CG900U specifically targets applications needing moderate noise attenuation in a small form factor.
