Product Detailed Parameters
- Description：PWR XFMR LAMINATED 25.2VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：117V
- Voltage - Secondary (Full Load)：25.2V
- Current - Output (Max)：1A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：25.2VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：80.56mm L x 50.80mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：1500Vrms
- Weight：1.5 lbs (680.4 g)
Download product information
Overview

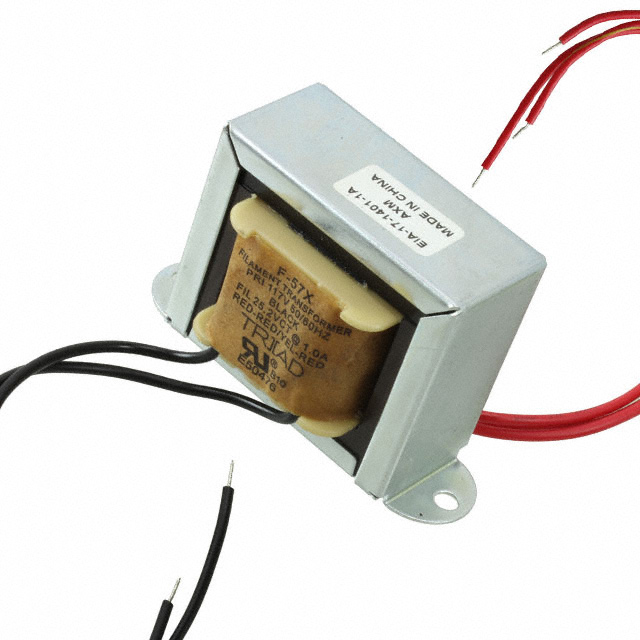

The F-57X is an industrial power transformer manufactured by Triad Magnetics, designed for chassis mounting applications. It features a laminated core construction and utilizes wire leads for electrical termination. The unit operates with a primary voltage of 117VAC and provides a secondary output of 25.2VCT at a current rating of 1.0A. The device has a power rating of 25.2 VA and includes UL/cUL certification for safety compliance in industrial control environments.
Feature Summary
- Chassis mount design for secure panel installation
- Laminated core construction for efficient power transfer
- Wire lead termination for flexible circuit integration
Applications
- Industrial control panels
- General purpose power supply circuits
- Equipment requiring isolated low-voltage AC power
Procurement Notes
Verify the specific primary voltage requirement against the datasheet, as listings indicate 117VAC input. Confirm that the 25.2VCT secondary output matches the load requirements. Ensure chassis mounting space accommodates the physical dimensions. Check for RoHS compliance status if required by project specifications. Validate that wire lead termination suits the assembly method.
Selection Notes
Select this component when a 25.2 VA capacity is sufficient for the application. Consider the 117VAC primary input compatibility with local power standards. Evaluate the need for UL/cUL certification for regulatory adherence. Assess whether chassis mounting fits the enclosure design constraints compared to PCB mount alternatives.
Part Context
This part belongs to Triad Magnetics' industrial power transformer lineup. It serves as a step-down solution for converting standard line voltage to lower AC levels. The F-series designation indicates a specific form factor and performance tier within the manufacturer's catalog for general industrial use.
Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Cross-reference with other Triad models offering similar VA ratings and voltage outputs if availability is an issue.
