F1100BB03

Power Line Filter Modules Overview

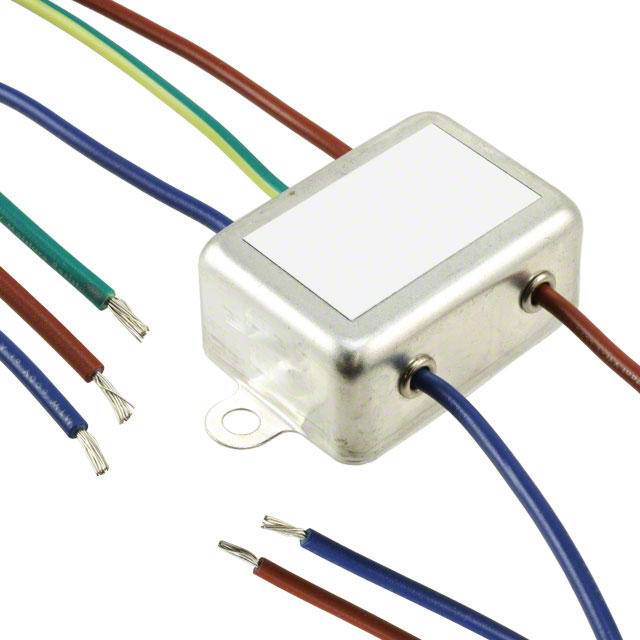

The Curtis Industries F1100BB03 is a single-phase RFI/EMI power line filter designed for AC mains applications. It operates at a voltage rating of 250 VAC and supports a current rating of 3 A at 50/60 Hz frequencies. The unit features wire leads for connection and utilizes a flange mount configuration for secure installation. Physical dimensions include a height of 19.1 mm, with an overall package size typically measuring approximately 2.500 x 1.125 x 1.250 inches.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression for single-phase AC power lines
• Flange mount design ensures stable mechanical attachment to equipment chassis
• Wire lead termination facilitates direct electrical connection without additional connectors

Power Line Filter Modules Applications

• General-purpose single-phase power line filtering in electronic equipment
• Suppression of radio frequency interference in 250 VAC industrial systems
• EMC compliance enhancement for devices requiring EMI noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific current rating (3A vs 15A) across different distributor listings, as conflicting data exists in public sources. Confirm that the flange mount style matches your chassis hole pattern. Ensure the wire lead length meets your assembly requirements before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, flange-mounted solution is required for 250 VAC circuits. The 3A rating suits low-to-medium power applications. Verify compatibility with 50/60 Hz input frequencies. Consider the physical footprint and wire lead configuration during PCB or chassis layout planning.

Power Line Filter Modules Part Context

This part belongs to Curtis Industries' power line filter module series. These components are engineered for general-purpose noise suppression in AC power inputs. The F1100 series typically offers robust construction for industrial environments, focusing on reliable EMI attenuation without complex tuning.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing requires matching single-phase, 250VAC, 3A specifications with flange mount and wire lead configurations from other manufacturers.
