F1150AA01

Power Line Filter Modules Overview

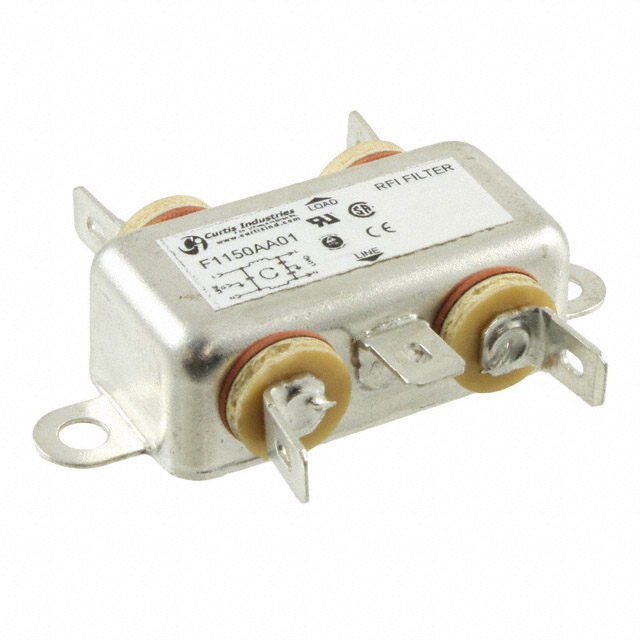

The Curtis Industries F1150AA01 is a single-stage line filter designed for chassis mounting. It operates at a rated voltage of 250VAC maximum at 50/60 Hz and supports a rated current of 1A. The component provides low-leakage performance, with leakage current specified at .25 mA at 115 V AC and .40 mA at 250 V AC. It is engineered to control conducted common mode emissions and reduce susceptibility to electromagnetic interference.

Power Line Filter Modules Feature Summary

• Provides low-leakage solution for Common Mode EMI/RFI compliance
• Economical design for general purpose applications
• Available with wire leads, quick connect, or screw terminals

Power Line Filter Modules Applications

• General purpose equipment
• Common mode noise suppression
• Lighting systems
• Scales

Power Line Filter Modules Procurement Notes

Verify the specific part number F1150AA01 against official Curtis Industries documentation to confirm the 1A current rating and 250VAC voltage specification. Ensure compatibility with chassis mounting requirements and terminal configuration needs. Cross-reference certification marks such as UL, CSA, TUV, and CE if regulatory compliance is required for the target application environment.

Power Line Filter Modules Selection Notes

Select this component when low leakage current is critical for safety or signal integrity in 1A circuits. The single-stage architecture offers a cost-effective approach to meeting EMI approval testing standards. Consider the physical dimensions and terminal type availability when integrating into existing panel layouts or wiring harnesses.

Power Line Filter Modules Part Context

This model belongs to the F1150 Series RFI Filters from Curtis Industries. The series is characterized by its ability to handle current ratings ranging from 1 A to 20 A. These filters are specifically intended to address conducted common mode emissions, providing a standardized solution for electromagnetic interference reduction in various electronic assemblies.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify pinout and mechanical footprint compatibility before considering alternative generic RFI filters.
